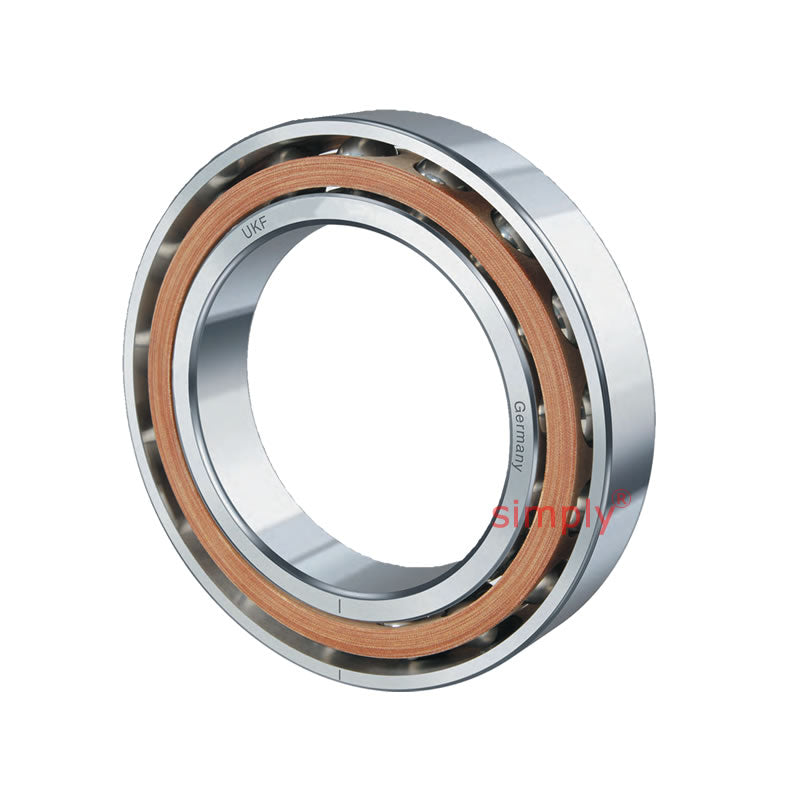

• UKF 70USSC65A210IL Super Precision Single Row Angular Contact Spindle Bearing 65x100x18mm
1 1

SKU: 70USSC65 .A21.0/I.L-UKF

UKF 70USSC65A210IL Super Precision Single Row Angular Contact Spindle Bearing 65x100x18mm

UKF 70USSC65A210IL Super Precision Single Row Angular Contact Spindle Bearing 65x100x18mm
€323,73 ex VAT
€323,73 ex VAT
Sale Sold out

Equivalent to: 70USSC65 .A21.0/I.L

In stock

Price Break
3+ €246,02
5+ €232,20
10+ €229,43
25+ €226,67
49+ €223,90
74+ €221,14
99+ €207,32
199+ €204,55
249+ €201,79
499+ €199,03
999+ €193,50

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
0
Brand / Quality:
UKF - High Quality
Inside Diameter:
65mm
Outside Diameter:
100mm
Width:
18mm
Seals / Shields:
None
Style:
Single Row Angular Contact Spindle Bearing
Contact Angle:
21 Degree contact angle
Bearing Preload:
Light preload
Technical
d 65mm
D 100mm
B 18mm
Dynamic load Co 15730 N
Static load C 22750 N
Speed in Grease 15400 rpm
Speed in Oil 24500 rpm
r<sub>a</sub> 1mm
d<sub>a</sub> 72mm
D<sub>a</sub> 93mm
Axial Preload F<sub>v</sub> L 250 N
Axial Preload F<sub>v</sub> M 760 N
Axial Preload F<sub>v</sub> S 1540 N
Axial Rigidity R<sub>a</sub> L 132 N/&mu;m
Axial Rigidity R<sub>a</sub> M 190 N/&mu;m
Axial Rigidity R<sub>a</sub> S 236 N/&mu;m
Radial Rigidity R<sub>r</sub> L 523 N/&mu;m
Radial Rigidity R <sub>r</sub> M 759 N/&mu;m
Radial Rigidity <sub>r</sub> S 955 N/&mu;m
Weight 0.37 kg
