SKU: 70USSC75-UKF

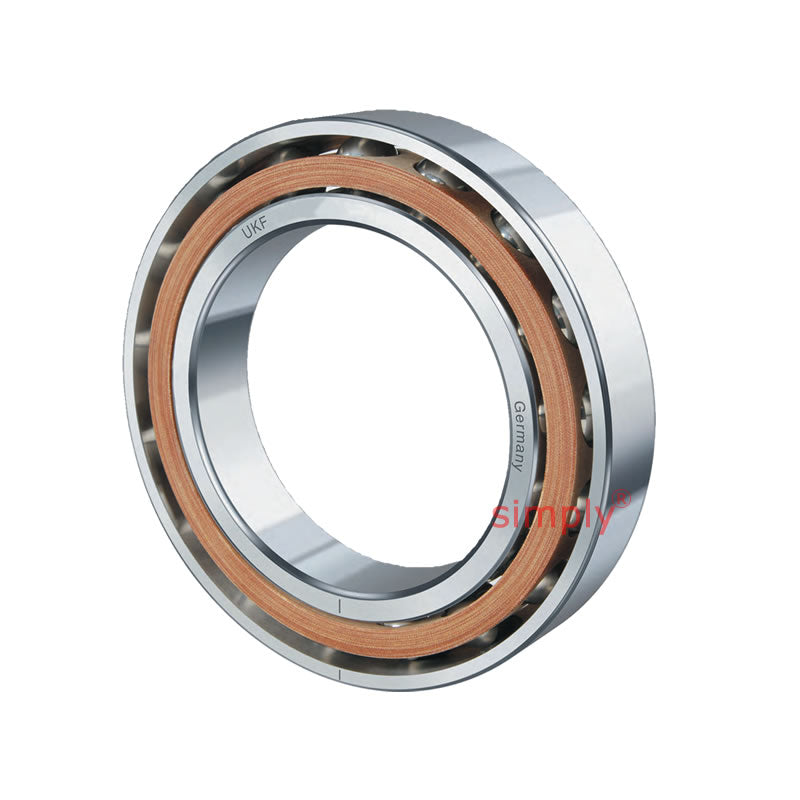

UKF 70USSC75 Super Precision Single Row Angular Contact Spindle Bearing 75x115x20mm
UKF 70USSC75 Super Precision Single Row Angular Contact Spindle Bearing 75x115x20mm
Equivalent to: 70USSC75
Out of stock
Share this product
Description
Description
- Brand / Quality:
- UKF - High Quality
- Inside Diameter:
- 75mm
- Outside Diameter:
- 115mm
- Width:
- 20mm
- Seals / Shields:
- None
- Style:
- Single Row Angular Contact Spindle Bearing
- Contact Angle:
- 21 Degree contact angle
Technical
Technical
| d | 75mm |
|---|---|
| D | 115mm |
| B | 20mm |
| Dynamic load Co | 22330 N |
| Static load C | 31010 N |
| Speed in Grease | 13300 rpm |
| Speed in Oil | 21000 rpm |
| r<sub>a</sub> | 1mm |
| d<sub>a</sub> | 83mm |
| D<sub>a</sub> | 107mm |
| Axial Preload F<sub>v</sub> L | 340 N |
| Axial Preload F<sub>v</sub> M | 1020 N |
| Axial Preload F<sub>v</sub> S | 2040 N |
| Axial Rigidity R<sub>a</sub> L | 155 N/μm |
| Axial Rigidity R<sub>a</sub> M | 224 N/μm |
| Axial Rigidity R<sub>a</sub> S | 282 N/μm |
| Radial Rigidity R<sub>r</sub> L | 627 N/μm |
| Radial Rigidity R <sub>r</sub> M | 219 N/μm |
| Radial Rigidity <sub>r</sub> S | 1139 N/μm |
| Weight | 0.52 kg |
