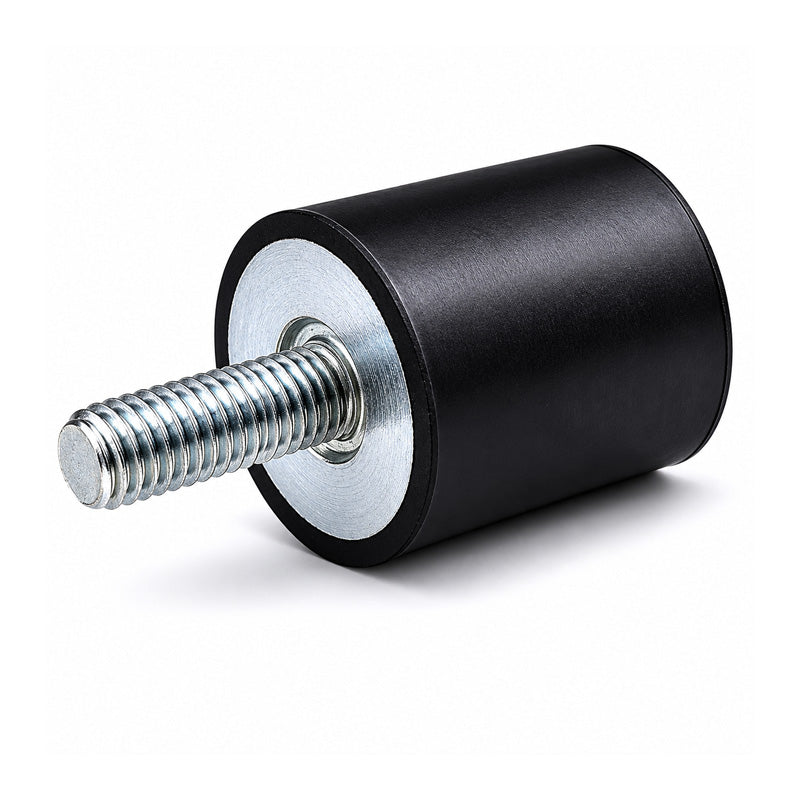

• High-Performance Male/Female Anti-Vibration Bobbin 25x30mm M6 Threads
1 1

SKU: 711-253055

High-Performance Male/Female Anti-Vibration Bobbin 25x30mm M6 Threads

High-Performance Male/Female Anti-Vibration Bobbin 25x30mm M6 Threads
€6,00 ex VAT
€6,00 ex VAT
Sale Sold out

In stock

Price Break
4+ €4,47
9+ €4,22
14+ €4,17
19+ €4,12
49+ €4,07
74+ €4,02
99+ €3,77
199+ €3,72
249+ €3,67
499+ €3,62
999+ €3,52

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
EBTKLVJMTR
Brand / Quality:
Simply AV Mounts
Thread Size:
M6
Outside Diameter:
25mm
Length:
30mm
Material:
Bright Zinc Plated Steel
Overall Length:
48mm
Technical
D 25mm
D1 M6
D2 M6
L 30mm
L1 18mm
L2 6mm
Deflection at Max Compressive Load 34mm
Deflection at Max Sheer Load 3mm
Max Compressive Load 13.7 kg
Max Sheer Load 4.8 kg
Temperature Range -30 deg C to +80 deg C
Hardness 55 Shore A Hardness
Weight 0.03 kg
Nuts <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M6+steel+nut">M6 Click Here</a>
Set Screws <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M6+set+screw">M6 Click Here</a>
