SKU: 712-253055

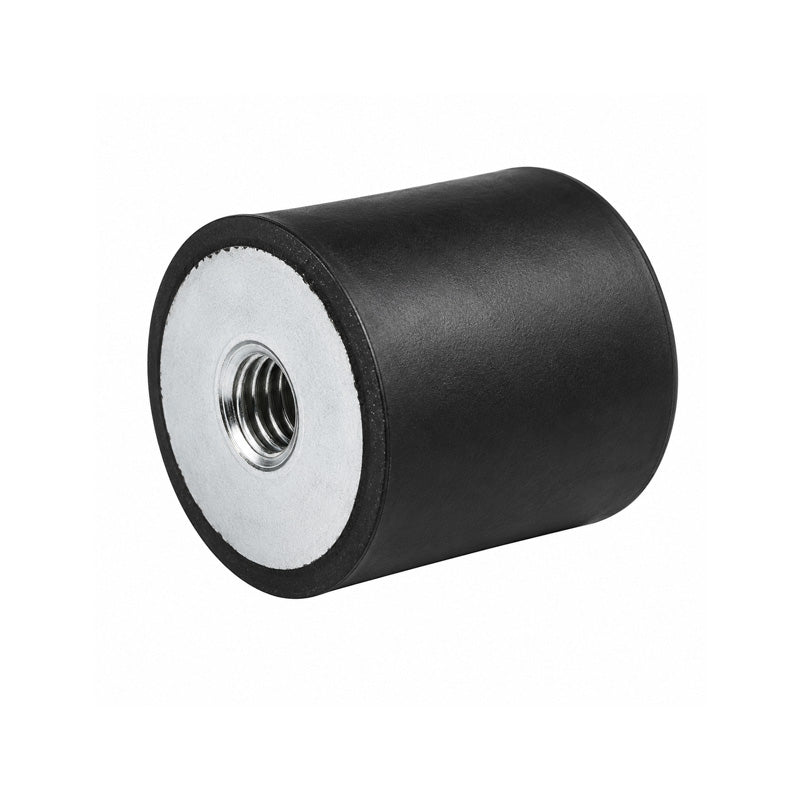

High-Performance Female/Female Anti-Vibration Bobbin 25x30mm M6 Threads
- Regular price
- €6.00 ex VAT
- Sale price
- €6,00
- Regular price
-
In stock
Quantity Price Breaks
4
€5.34
9
€5.04
14
€4.98
19
€4.92
49
€4.86
74
€4.80
99
€4.50
199
€4.44
249
€4.38
499
€4.32
999
€4.20
SKU:
712-253055
High-Performance Female/Female Anti-Vibration Bobbin 25x30mm M6 Threads
- Regular price
- €6.00 ex VAT
- Sale price
- €6,00
- Regular price
-
Description
Female to Female Bobbin Mounts: These female to female anti-vibration mounts represent an ideal low-cost solution to your vibration dampening requirements. Constructed of Zinc plated corrosion resistant steel sandwiched between the rubber dampening element these simple mounts provide excellent levels of dampening and vibration absorption in either Compression or Shear or a combination of both.
Rohs: Compliant as standard.
Benefits: Excellent anti-vibration and dampening properties, low cost, a wide range of sizes available, other materials on request.
Technical
| D | = | 25mm |
| D1 | = | M6 |
| D2 | = | M6 |
| L | = | 30mm |
| L1 | = | 6mm |
| L2 | = | 6mm |
| Deflection at Max Compressive Load | = | 3.9mm |
| Deflection at Max Sheer Load | = | 7.8mm |
| Max Compressive Load | = | 27.8 kg |
| Max Sheer Load | = | 13.2 kg |
| Temperature Range | = | -30 deg C to +80 deg C |
| Hardness | = | 55 Shore A Hardness |
| Weight | = | 0.03 kg |
| Nuts | = | < |
| a href=" | = | advanced_search_result.php?sort=2a& |
| search_in_description=1& | = | keywords=M6+steel+nut" |
| > | = | M6 Click Here< |
| /a> | = | |
| Set Screws | = | < |
| a href=" | = | advanced_search_result.php?sort=2a& |
| search_in_description=1& | = | keywords=M6+set+screw" |
| > | = | M6 Click Here< |
| /a> | = |
