• High-Performance Female/Female Anti-Vibration Bobbin 30x40mm M8 Threads
1 1

SKU: 712-304055

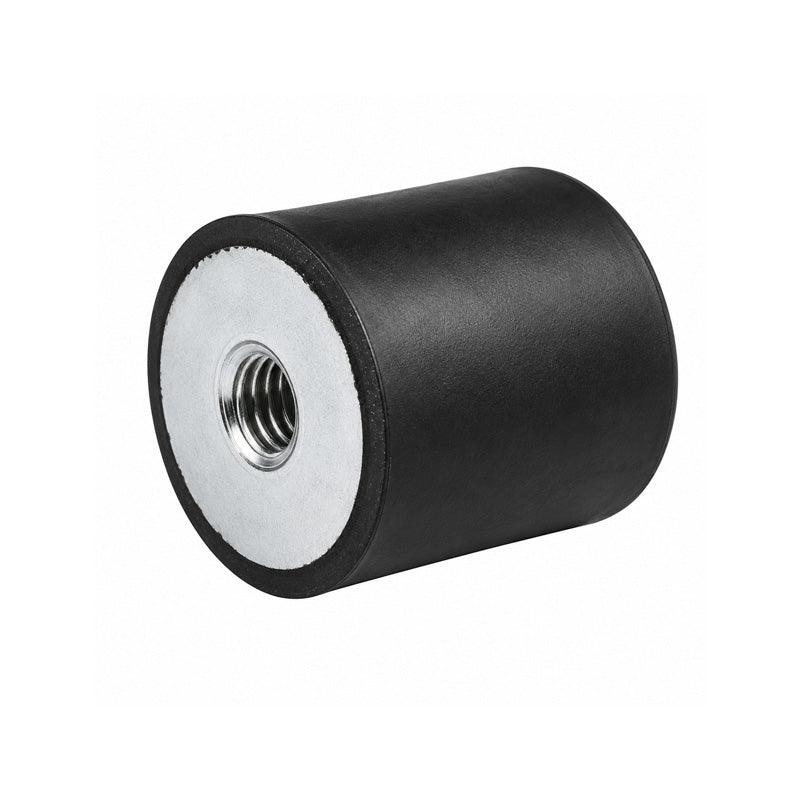

High-Performance Female/Female Anti-Vibration Bobbin 30x40mm M8 Threads

High-Performance Female/Female Anti-Vibration Bobbin 30x40mm M8 Threads
€7,16 ex VAT
€7,16 ex VAT
Sale Sold out

In stock

Price Break
4+ €5,44
9+ €5,14
14+ €5,07
19+ €5,01
49+ €4,95
74+ €4,89
99+ €4,59
199+ €4,52
249+ €4,46
499+ €4,40
999+ €4,28

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
KQYGRKPBYN
Brand / Quality:
Simply AV Mounts
Thread Size:
M8
Outside Diameter:
30mm
Length:
40mm
Material:
Bright Zinc Plated Steel
Technical
D 30mm
D1 M8
D2 M8
L 40mm
L1 8mm
L2 8mm
Deflection at Max Compressive Load 3.9mm
Deflection at Max Sheer Load 7.8mm
Max Compressive Load 40.5 kg
Max Sheer Load 19.5 kg
Temperature Range -30 deg C to +80 deg C
Hardness 55 Shore A Hardness
Weight 0.05 kg
Nuts <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M8+steel+nut">M8 Click Here</a>
Set Screws <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M8+set+screw">M8 Click Here</a>
