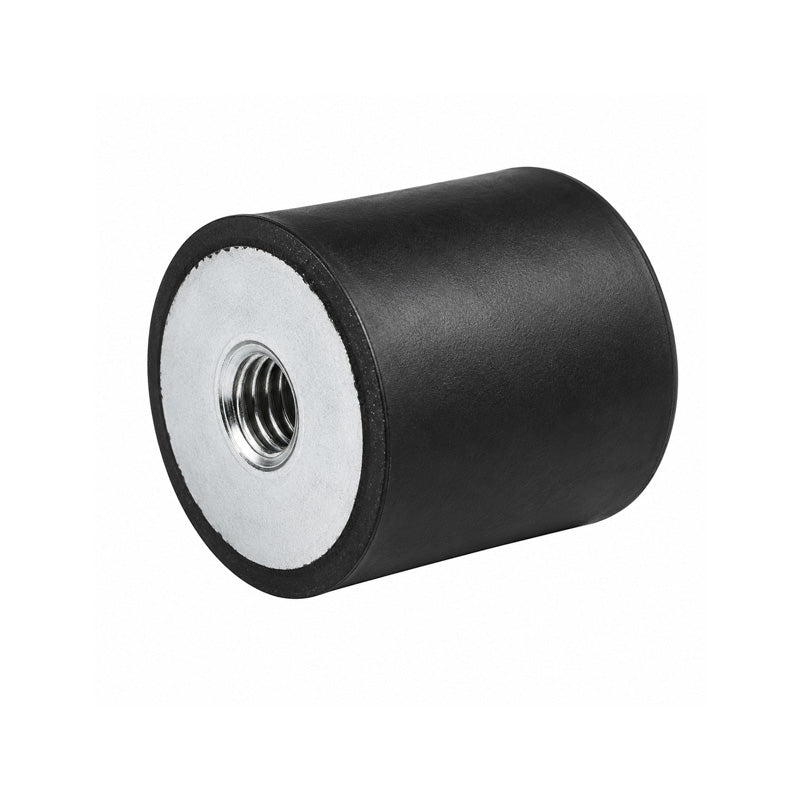

• High-Performance Female/Female Anti-Vibration Bobbin 40x30mm M10 Threads
1 1

SKU: 712-40301055

High-Performance Female/Female Anti-Vibration Bobbin 40x30mm M10 Threads

High-Performance Female/Female Anti-Vibration Bobbin 40x30mm M10 Threads
€9,17 ex VAT
€9,17 ex VAT
Sale Sold out

In stock

Price Break
4+ €6,84
9+ €6,45
14+ €6,38
19+ €6,30
49+ €6,22
74+ €6,14
99+ €5,76
199+ €5,68
249+ €5,61
499+ €5,53
999+ €5,38

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
KQYGRKPBYN
Brand / Quality:
Simply AV Mounts
Thread Size:
M10
Outside Diameter:
40mm
Length:
30mm
Material:
Bright Zinc Plated Steel
Technical
D 40mm
D1 M10
D2 M10
L 30mm
L1 10mm
L2 10mm
Deflection at Max Compressive Load 3.9mm
Deflection at Max Sheer Load 7.8mm
Max Compressive Load 76.4 kg
Max Sheer Load 34.6 kg
Temperature Range -30 deg C to +80 deg C
Hardness 55 Shore A Hardness
Weight 0.1 kg
Nuts <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M10+steel+nut">M10 Click Here</a>
Set Screws <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M10+set+screw">M10 Click Here</a>
