• UKF 719USS90A2100M Super Precision Angular Contact Spindle Bearing 90x125x18mm
1 1

SKU: 719USS90 .A21.0/0.M-UKF

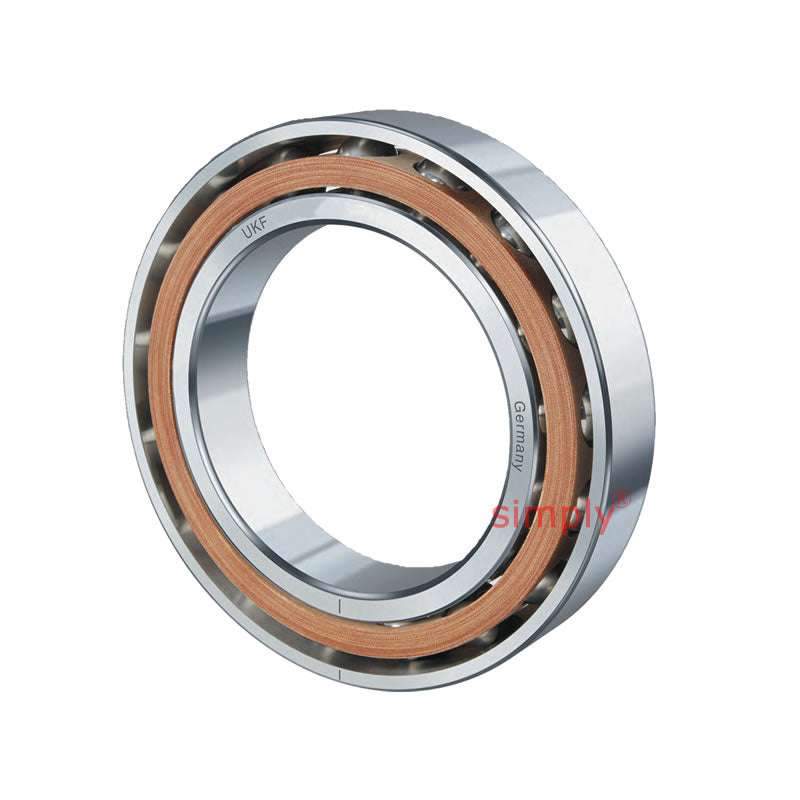

UKF 719USS90A2100M Super Precision Angular Contact Spindle Bearing 90x125x18mm

UKF 719USS90A2100M Super Precision Angular Contact Spindle Bearing 90x125x18mm
€272,80 ex VAT
€272,80 ex VAT
Sale Sold out

Equivalent to: 719USS90 .A21.0/0.M

In stock

Price Break
3+ €207,32
5+ €195,67
10+ €193,34
25+ €191,01
49+ €188,68
74+ €186,35
99+ €174,71
199+ €172,38
249+ €170,05
499+ €167,72
999+ €163,06

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UJZTL76NYY
Brand / Quality:
UKF - High Quality
Inside Diameter:
90mm
Outside Diameter:
125mm
Width:
18mm
Seals / Shields:
None
Style:
Single Universal Matchable Bearing
Contact Angle:
21 Degree contact angle
Bearing Preload:
Medium preload
Technical
d 90mm
D 125mm
B 18mm
Dynamic load Co 43600 N
Static load C 42400 N
Speed in Grease 8500 rpm
Speed in Oil 13500 rpm
r<sub>a</sub> 0.6mm
d<sub>a</sub> 96.5mm
D<sub>a</sub> 118.5mm
Axial Preload F<sub>v</sub> L 370 N
Axial Preload F<sub>v</sub> M 1100 N
Axial Preload F<sub>v</sub> S 2200 N
Axial Rigidity R<sub>a</sub> L 155 N/&mu;m
Axial Rigidity R<sub>a</sub> M 225 N/&mu;m
Axial Rigidity R<sub>a</sub> S 280 N/&mu;m
Radial Rigidity R<sub>r</sub> L 630 N/&mu;m
Radial Rigidity R <sub>r</sub> M 900 N/&mu;m
Radial Rigidity <sub>r</sub> S 1140 N/&mu;m
Weight 0.58 kg
