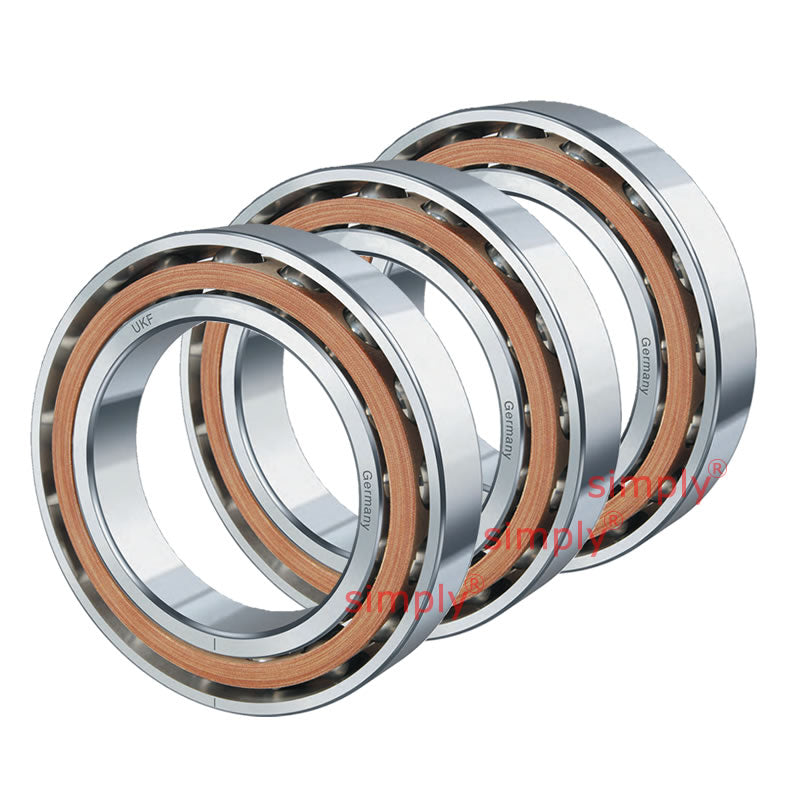

• UKF 719USSC20A21I1DBM Super Precision Single Row Angular Contact Spindle Bearing 20x37x9mm
1 1

SKU: 719USSC20 .A21.I/1.DB.M-UKF

UKF 719USSC20A21I1DBM Super Precision Single Row Angular Contact Spindle Bearing 20x37x9mm

UKF 719USSC20A21I1DBM Super Precision Single Row Angular Contact Spindle Bearing 20x37x9mm
€265,53 ex VAT
€265,53 ex VAT
Sale Sold out

Equivalent to: 719USSC20 .A21.I/1.DB.M

In stock

Price Break
3+ €201,79
5+ €190,45
10+ €188,19
25+ €185,92
49+ €183,65
74+ €181,38
99+ €170,05
199+ €167,78
249+ €165,51
499+ €163,25
999+ €158,71

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
0
Brand / Quality:
UKF - High Quality
Inside Diameter:
20mm
Outside Diameter:
37mm
Width:
9mm
Seals / Shields:
None
Style:
Single Row Angular Contact Spindle Bearing
Contact Angle:
21 Degree contact angle
Bearing Preload:
Medium preload
Technical
d 20mm
D 37mm
B 9mm
Dynamic load Co 2255 N
Static load C 4900 N
Speed in Grease 46200 rpm
Speed in Oil 71400 rpm
r<sub>a</sub> 0.15mm
d<sub>a</sub> 23mm
D<sub>a</sub> 34mm
Axial Preload F<sub>v</sub> L 60 N
Axial Preload F<sub>v</sub> M 180 N
Axial Preload F<sub>v</sub> S 360 N
Axial Rigidity R<sub>a</sub> L 48 N/&mu;m
Axial Rigidity R<sub>a</sub> M 69 N/&mu;m
Axial Rigidity R<sub>a</sub> S 18 N/&mu;m
Radial Rigidity R<sub>r</sub> L 196 N/&mu;m
Radial Rigidity R <sub>r</sub> M 276 N/&mu;m
Radial Rigidity <sub>r</sub> S 351 N/&mu;m
Weight 0.03 kg
