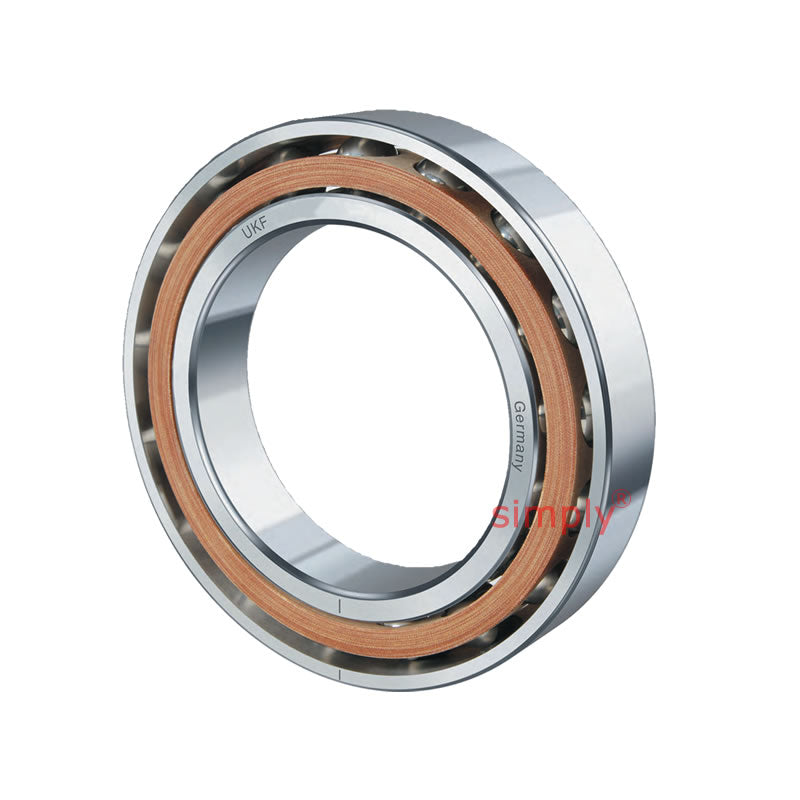

• UKF 719USSC65A21I1L Super Precision Single Row Angular Contact Spindle Bearing 65x90x13mm
1 1

SKU: 719USSC65 .A21.I/1.L-UKF

UKF 719USSC65A21I1L Super Precision Single Row Angular Contact Spindle Bearing 65x90x13mm

UKF 719USSC65A21I1L Super Precision Single Row Angular Contact Spindle Bearing 65x90x13mm
€272,80 ex VAT
€272,80 ex VAT
Sale Sold out

Equivalent to: 719USSC65 .A21.I/1.L

In stock

Price Break
3+ €207,32
5+ €195,67
10+ €193,34
25+ €191,01
49+ €188,68
74+ €186,35
99+ €174,71
199+ €172,38
249+ €170,05
499+ €167,72
999+ €163,06

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
0
Brand / Quality:
UKF - High Quality
Inside Diameter:
65mm
Outside Diameter:
90mm
Width:
13mm
Seals / Shields:
None
Style:
Single Row Angular Contact Spindle Bearing
Contact Angle:
21 Degree contact angle
Bearing Preload:
Light preload
Technical
d 65mm
D 90mm
B 13mm
Dynamic load Co 12265 N
Static load C 16100 N
Speed in Grease 16800 rpm
Speed in Oil 25900 rpm
r<sub>a</sub> 0.3mm
d<sub>a</sub> 69.5mm
D<sub>a</sub> 85.5mm
Axial Preload F<sub>v</sub> L 200 N
Axial Preload F<sub>v</sub> M 580 N
Axial Preload F<sub>v</sub> S 1160 N
Axial Rigidity R<sub>a</sub> L 127 N/&mu;m
Axial Rigidity R<sub>a</sub> M 190 N/&mu;m
Axial Rigidity R<sub>a</sub> S 224 N/&mu;m
Radial Rigidity R<sub>r</sub> L 506 N/&mu;m
Radial Rigidity R <sub>r</sub> M 725 N/&mu;m
Radial Rigidity <sub>r</sub> S 909 N/&mu;m
Weight 0.17 kg
