SKU: 7202BEP-SKF

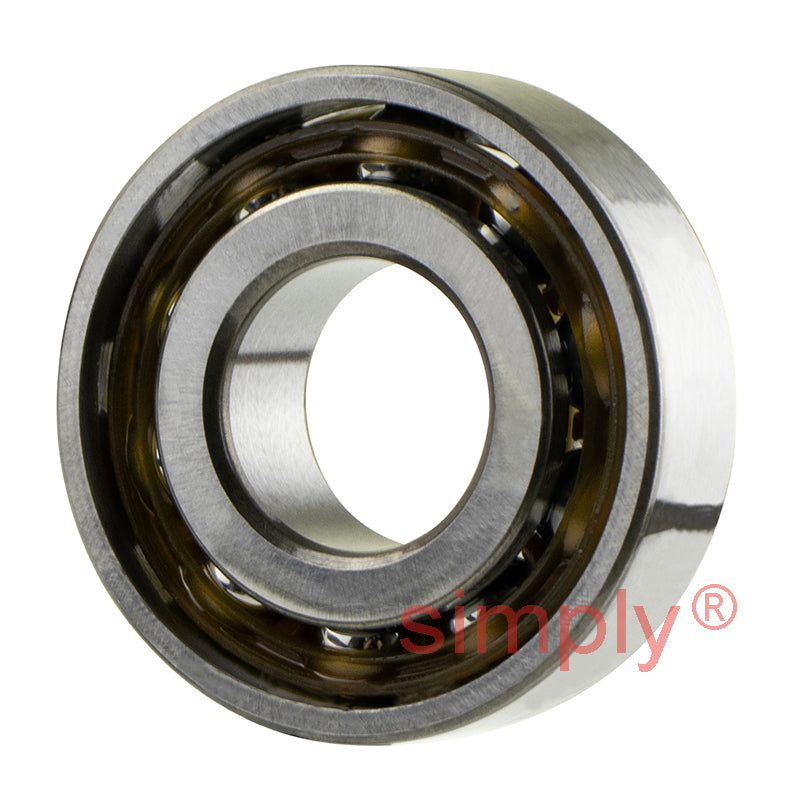

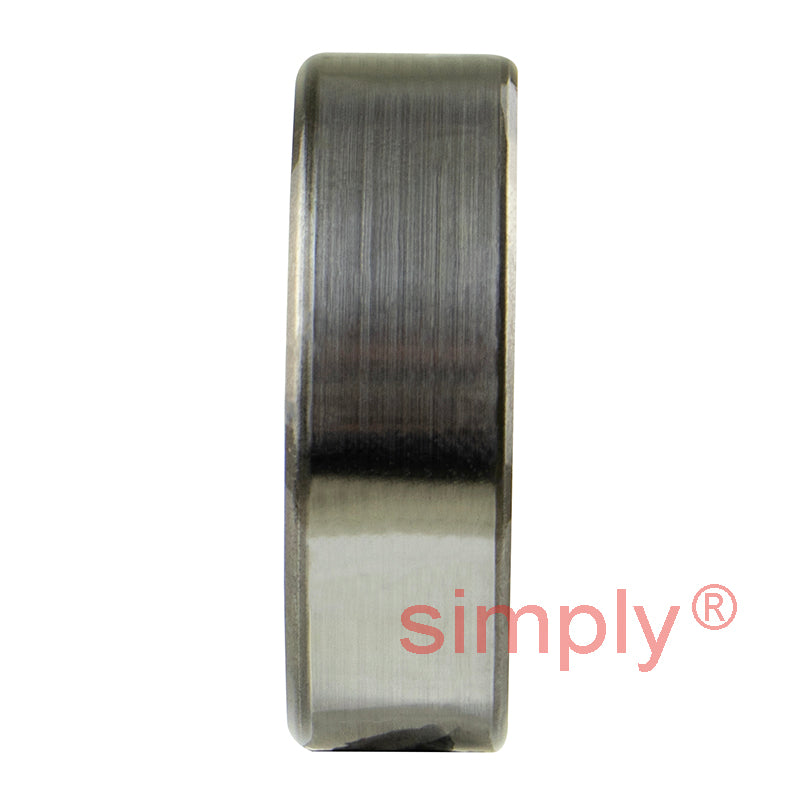

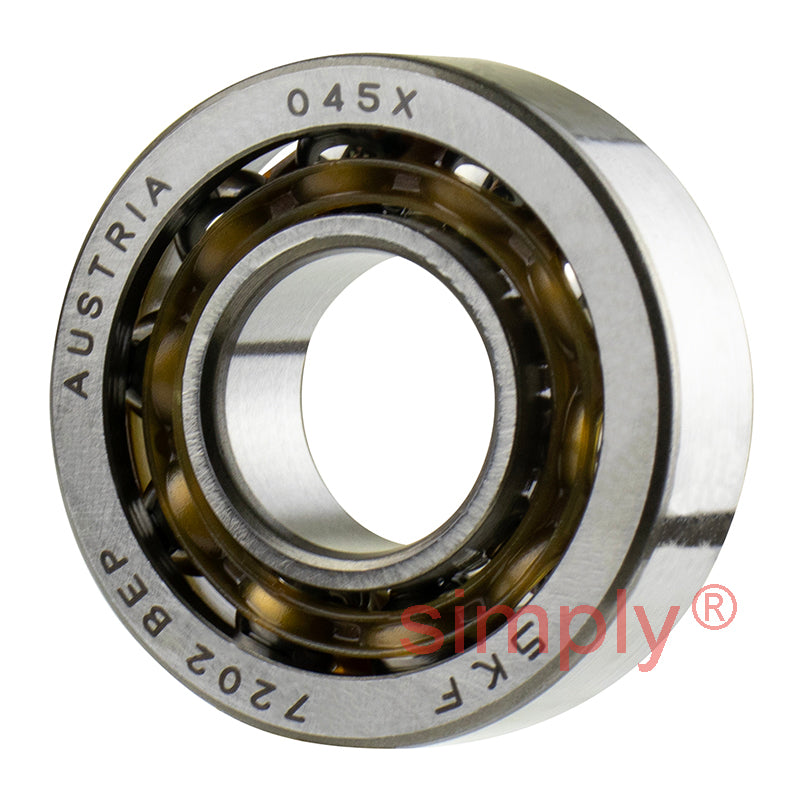

SKF 7202BEP Single Row Angular Contact Ball Bearing 15x35x11mm
- Regular price
- €21.73 ex VAT
- Sale price
- €21,73
- Regular price
-
In stock
Quantity Price Breaks
4
€19.34
8
€18.25
12
€18.04
16
€17.82
25
€17.60
50
€17.38
99
€16.30
199
€16.08
249
€15.86
499
€15.65
999
€15.21
SKU:
7202BEP-SKF
SKF 7202BEP Single Row Angular Contact Ball Bearing 15x35x11mm
- Regular price
- €21.73 ex VAT
- Sale price
- €21,73
- Regular price
-
Description
SKF Single Row Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load bearing capacity.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Technical
| d | = | 15mm |
| D | = | 35mm |
| B | = | 11mm |
| Dynamic load Cr | = | 8.84 kN |
| Static load Cor | = | 4.8 kN |
| Fatigue load limit Pu | = | 0.204 kN |
| Reference speed | = | 24000 rpm |
| Limit speed | = | 24000 rpm |
| Weight | = | 0.045 kg |
| d1 | = | 22.7mm |
| d2 | = | 19mm |
| D1 | = | 27.8mm |
| r1r2 min | = | 0.6mm |
| r3r4 min | = | 0.3mm |
| a | = | 16mm |
| da min | = | 19.2mm |
| Da max | = | 30.8mm |
| Db max | = | 32.6mm |
| ra max | = | 0.6mm |
| rb max | = | 0.3mm |
