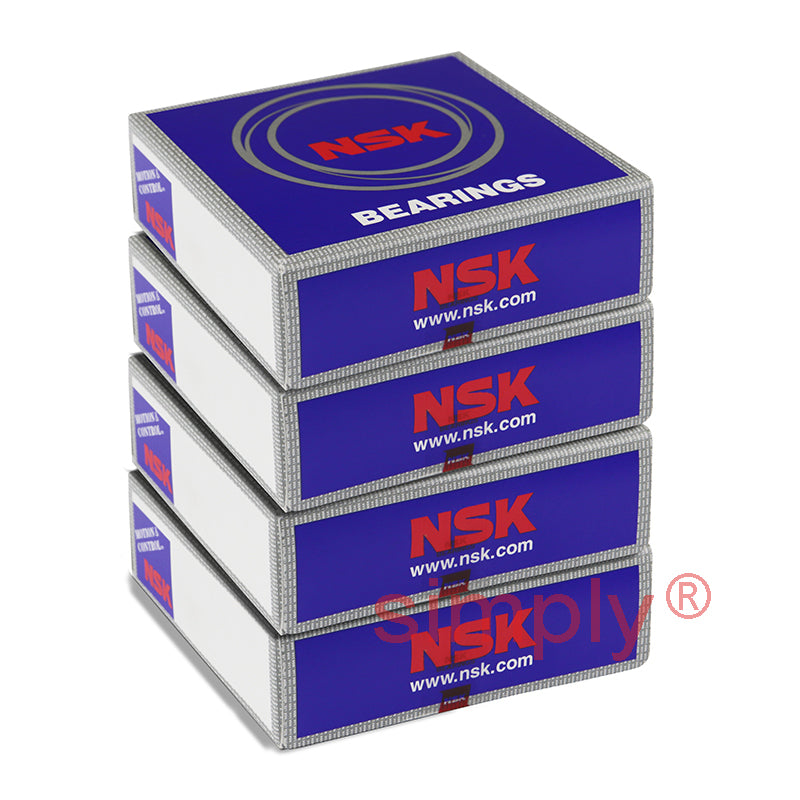

• NSK 7206A5TRQULP3 Super Precision Angular Contact Spindle Bearing 30x62x16mm (Set of 4)
1 1

SKU: 7206A5TRQULP3-NSK

NSK 7206A5TRQULP3 Super Precision Angular Contact Spindle Bearing 30x62x16mm (Set of 4)

NSK 7206A5TRQULP3 Super Precision Angular Contact Spindle Bearing 30x62x16mm (Set of 4)
€565,43 ex VAT
€565,43 ex VAT
Sale Sold out

In stock

Price Break
3+ €421,27
5+ €397,61
10+ €392,87
25+ €388,14
49+ €383,41
74+ €378,67
99+ €355,01
199+ €350,27
249+ €345,54
499+ €340,80
999+ €331,34

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
RGR72E2J9J
Brand / Quality:
NSK - High Quality
Inside Diameter:
30mm
Outside Diameter:
62mm
Width:
16mm
Seals / Shields:
None
Style:
Universal Matched Quad Bearing Set
Contact Angle:
25 Degree contact angle
Bearing Preload:
Light preload
Technical
--- Bearing dimensions
d 30mm
D 62mm
B 16mm
r<sub>min</sub> 1mm
r1<sub>min</sub> 0.6mm
--- Loads angles and speeds
C<sub>r</sub> 23.2Kn
C<sub>or</sub> 14.1kN
Axial load Kn 12 kN
Contact angle 25 degrees
Factor f<sub>o</sub> -
Effective diameter 18.7mm
Max speed in grease 21800 rpm
Max speed in oil 32700 rpm
--- Fitting dimensions
d<sub>a min</sub> 36mm
D<sub>a max</sub> 56mm
D<sub>b max</sub> 57mm
r<sub>a max</sub> 1mm
r<sub>b max</sub> 0.5mm
Weight 0.776kg
