SKU: 7206BEGBP-SKF
SKF 7206BEGBP Single Row Angular Contact Ball Bearing 30x62x16mm
- Regular price
- €98.36 ex VAT
- Sale price
- €98,36
- Regular price
-
In stock
Quantity Price Breaks
4
€87.54
8
€82.62
12
€81.64
16
€80.66
25
€79.67
50
€78.69
99
€73.77
199
€72.79
249
€71.80
499
€70.82
999
€68.85
SKU:
7206BEGBP-SKF
SKF 7206BEGBP Single Row Angular Contact Ball Bearing 30x62x16mm
- Regular price
- €98.36 ex VAT
- Sale price
- €98,36
- Regular price
-
Description
SKF Single Row Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load bearing capacity.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Benefits: Compact, rigid, accommodates tilting, radial and axial loads

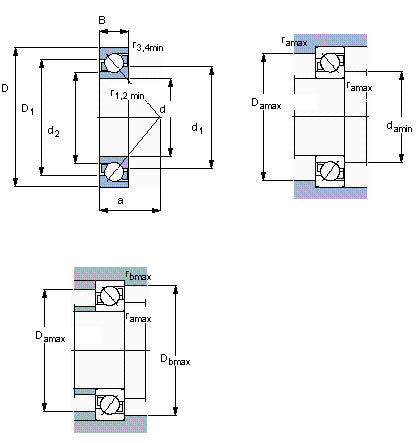

Technical
| d | = | 30mm |
| D | = | 62mm |
| B | = | 16mm |
| Dynamic load Cr | = | 24 kN |
| Static load Cor | = | 15.6 kN |
| Fatigue load limit Pu | = | 0.655 kN |
| Reference speed | = | 1300 rpm |
| Limit speed | = | 1400 rpm |
| Weight | = | 0.2 kg |
| d1 | = | 42.65mm |
| d2 | = | 36.13mm |
| D1 | = | 50.1mm |
| r1r2 min | = | 1mm |
| r3r4 min | = | 0.6mm |
| a | = | 27.3mm |
| da min | = | 35.6mm |
| Da max | = | 56.4mm |
| Db max | = | 57.8mm |
| ra max | = | 1mm |
| rb max | = | 0.6mm |
