SKU: 7209A5SN24TRDULP3-RHP

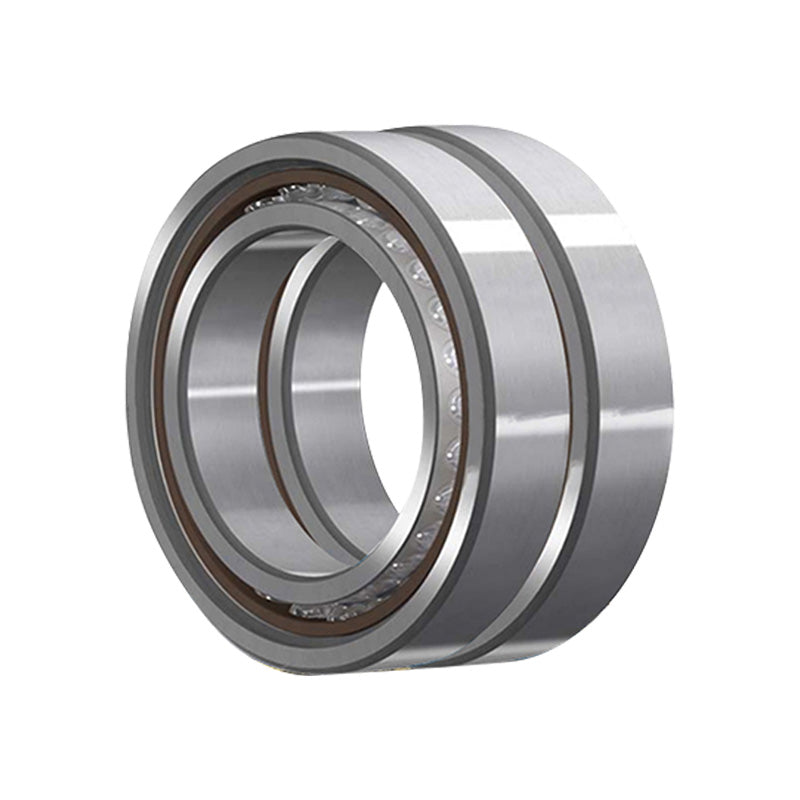

RHP 7209A5SN24TRDULP3 Super Precision Angular Contact Spindle Bearing 45x85x19mm (Set of 2)

RHP 7209A5SN24TRDULP3 Super Precision Angular Contact Spindle Bearing 45x85x19mm (Set of 2)
Regular price €1.130,85 ex VAT
Regular price Sale price €1.130,85 ex VAT
Sale Sold out

In stock

Price Break
3+ €859,40
5+ €811,12
10+ €801,46
25+ €791,80
49+ €782,15
74+ €772,49
99+ €724,21
199+ €714,55
249+ €704,90
499+ €695,24
999+ €675,93
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Bearing dimensions
d 45mm
D 85mm
B 19mm
r<sub>min</sub> 1.1mm
r1<sub>min</sub> 0.6mm
--- Loads angles and speeds
C<sub>r</sub> -41Kn
C<sub>or</sub> -27.6kN
Axial load Kn 27.7 kN
Contact angle 25 degrees
Factor f<sub>o</sub> -
Effective diameter 24.7mm
Max speed in grease 20000 rpm
Max speed in oil 30000 rpm
--- Fitting dimensions
d<sub>a min</sub> 52mm
D<sub>a max</sub> 78mm
D<sub>b max</sub> 80mm
r<sub>a max</sub> 1mm
r<sub>b max</sub> 0.6mm
Weight 0.674kg
