SKU: 7212CTRP3-RHP

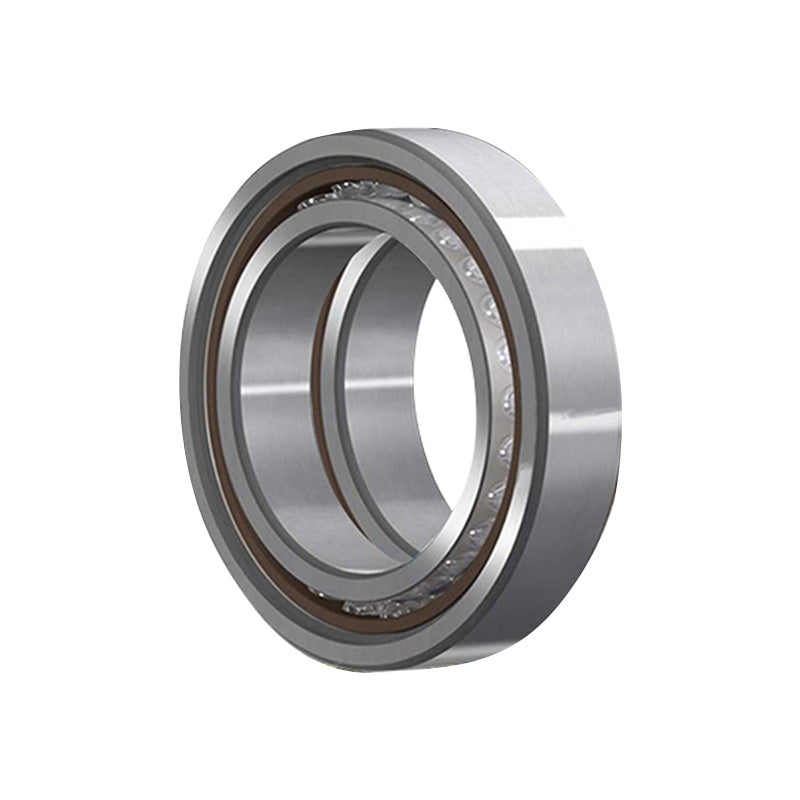

RHP 7212CTRP3 Super Precision Angular Contact Spindle Bearing 60x110x22mm

RHP 7212CTRP3 Super Precision Angular Contact Spindle Bearing 60x110x22mm
Regular price €325,55 ex VAT
Regular price Sale price €325,55 ex VAT
Sale Sold out

In stock

Price Break
3+ €247,40
5+ €233,50
10+ €230,72
25+ €227,94
49+ €225,16
74+ €222,38
99+ €208,48
199+ €205,70
249+ €202,92
499+ €200,14
999+ €194,58
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Bearing dimensions
d 60mm
D 110mm
B 22mm
r<sub>min</sub> 1.5mm
r1<sub>min</sub> 1mm
--- Loads angles and speeds
C<sub>r</sub> 67.5Kn
C<sub>or</sub> 49kN
Axial load Kn 34 kN
Contact angle 15 degrees
Factor f<sub>o</sub> 14.4
Effective diameter 22.4mm
Max speed in grease 13600 rpm
Max speed in oil 20600 rpm
--- Fitting dimensions
d<sub>a min</sub> 69mm
D<sub>a max</sub> 101mm
D<sub>b max</sub> 104mm
r<sub>a max</sub> 1.5mm
r<sub>b max</sub> 0.8mm
Weight 0.78kg
