SKU: 7516-RBC

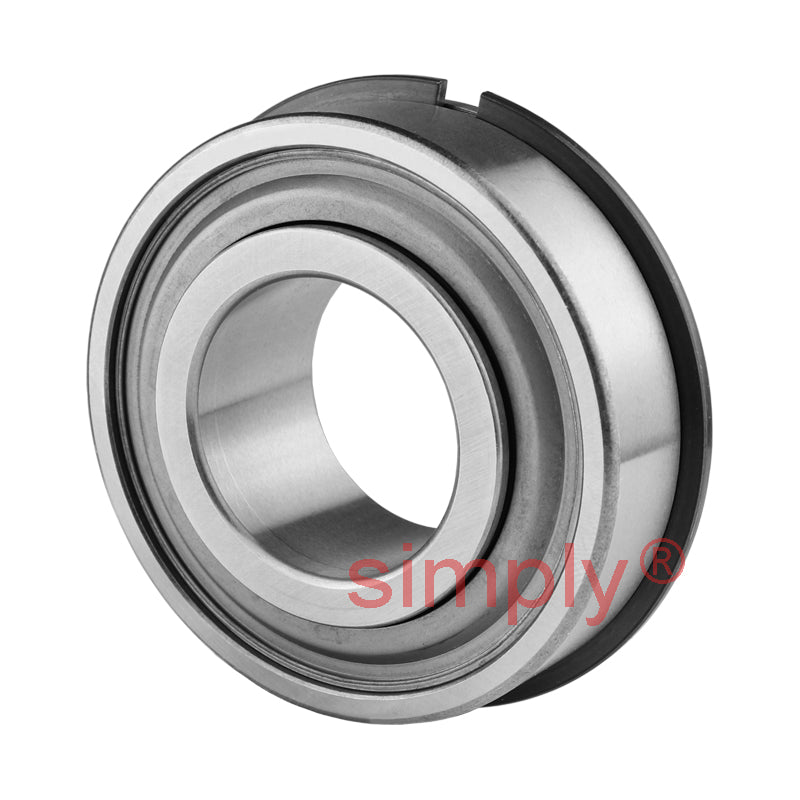

RBC 7516 Heavy Duty Precision Ground Rubber Sealed with Trash Guard Radial Bearing with Snap Ring 1x2x0.625 inch
RBC 7516 Heavy Duty Precision Ground Rubber Sealed with Trash Guard Radial Bearing with Snap Ring 1x2x0.625 inch
Regular price
€56,87
ex VAT
Regular price
Sale price
€56,87
ex VAT
Equivalent to: 7516/NR
In stock
Price Break
10+
€43,22
19+
€40,79
29+
€40,30
39+
€39,82
49+
€39,33
74+
€38,85
99+
€36,42
199+
€35,93
249+
€35,45
499+
€34,96
999+
€33,99
Quantity
Couldn't load pickup availability
Description
Description
|
RBC NICE 7500 Heavy Duty Precision Ground Rubber Sealed with Trash Guard Radial Bearing with Snap Ring: Similar in construction to the 1600 Series™ bearings, the 7500 Series™ bearings incorporate an incredibly effective single lip contact seal which includes a metal trash guard. Both the inner and outer rings are machined from chrome steel, precise heat treatment and grinding brings the hardened rings within tolerance range. The 7500 Series™ bearings are recommended for use in any application where accuracy of rotation, near silent performance and precise adherence to exacting tolerances are a concern. The guarded seals ensure that lubricant is kept in while keeping dust and dirt out. Benefits: Double sealed 7500 Series™ bearings are grease packed as standard, and are all provided with a snap ring groove with a snap ring pre-assembled. |
- Brand / Quality:
- RBC / Nice - High Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Outside Diameter:
- 50.8mm = 2 inch
- Width:
- 15.88mm = 0.625 (5/8) inch
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| Bore d | 1 inch = 25.4mm |
|---|---|
| Tolerance | +.0000/-.0005 |
| Outside Diameter D | 2 inch = 50.8mm |
| Tolerance | +.0000/-.0005 |
| Width B | 0.625 inch = 15.88mm |
| Tolerance | +.000/-.005 |
| A | 0.0625 inch = 1.59mm |
| Inner Width C | 0.75 inch = 19.05mm |
| Tolerance | +.000/-.005 |
| F | 1.306 inch = 33.17mm |
| G | 0.136 inch = 3.45mm |
| Tolerance | +.000/- .005 |
| H | 0.042 inch = 1.07mm |
| J | 2.1563 inch = 54.77mm |
| Radius R | 0.035 inch = 0.89mm |
| Dynamic C | 13217N |
| Static Co | 6008N |
| da min | 1.25 inch = 31.75mm |
| Da max | 1.75 inch = 44.45mm |
| r max | 0.035 inch = 0.89mm |
