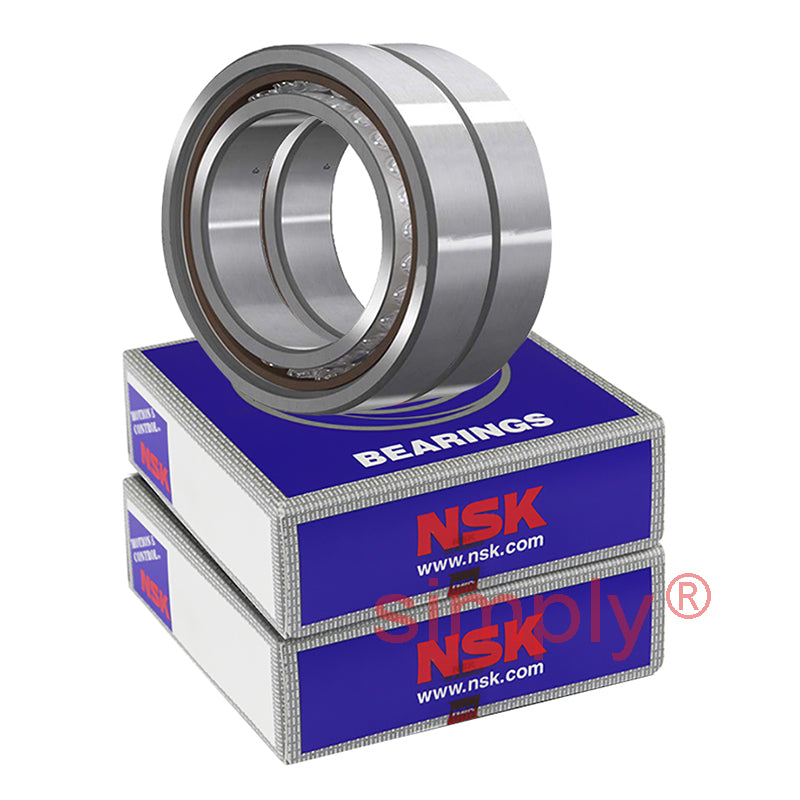

• NSK 7916CTYNDBLP3 Super Precision Angular Contact Spindle Bearing 80x110x16mm (Set of 2)
1 1

SKU: 7916CTYNDBLP3-NSK

NSK 7916CTYNDBLP3 Super Precision Angular Contact Spindle Bearing 80x110x16mm (Set of 2)

NSK 7916CTYNDBLP3 Super Precision Angular Contact Spindle Bearing 80x110x16mm (Set of 2)
€702,39 ex VAT
€702,39 ex VAT
Sale Sold out

In stock

Price Break
3+ €533,79
5+ €503,80
10+ €497,80
25+ €491,80
49+ €485,81
74+ €479,81
99+ €449,82
199+ €443,82
249+ €437,82
499+ €431,83
999+ €419,83

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
5ZG1TM6ZIA
Brand / Quality:
NSK - High Quality
Inside Diameter:
80mm
Outside Diameter:
110mm
Width:
16mm
Seals / Shields:
None
Style:
Universal Matched Pair of Bearings
Contact Angle:
15 Degree contact angle
Bearing Preload:
Light preload
Technical
--- Bearing dimensions
d 80mm
D 110mm
B 16mm
r<sub>min</sub> 1mm
r1<sub>min</sub> 0.6mm
--- Loads angles and speeds
C<sub>r</sub> 30.5Kn
C<sub>or</sub> 30.5kN
Axial load Kn 18.7 kN
Contact angle 15 degrees
Factor f<sub>o</sub> 16.7
Effective diameter 20.7mm
Max speed in grease 12200 rpm
Max speed in oil 18500 rpm
--- Fitting dimensions
d<sub>a min</sub> 86mm
D<sub>a max</sub> 104mm
D<sub>b max</sub> 105mm
r<sub>a max</sub> 1mm
r<sub>b max</sub> 0.5mm
Weight 0.754kg
