SKU: 7918A5TRDULP4-RHP

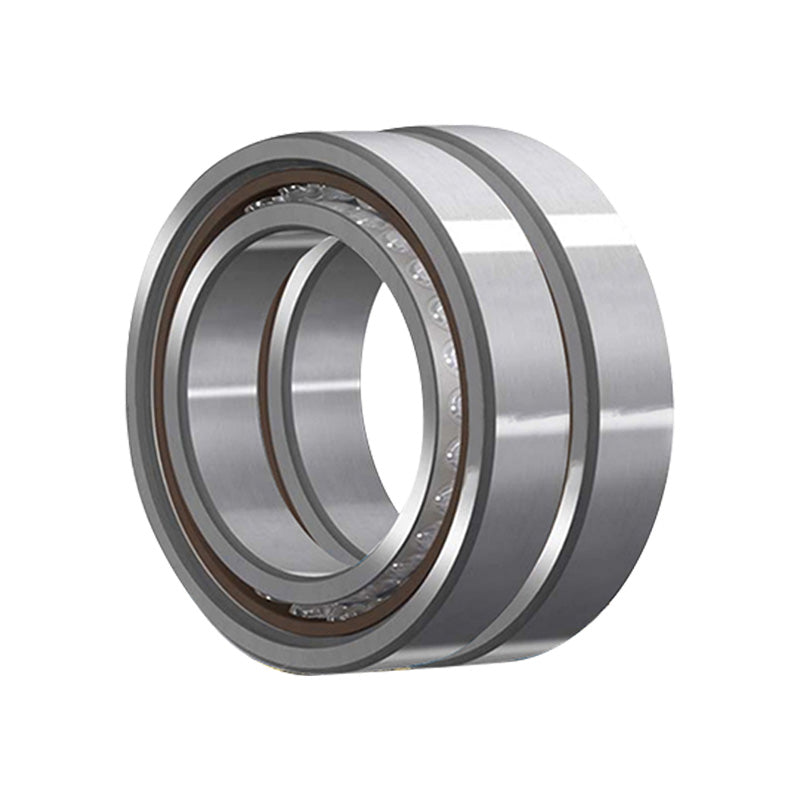

RHP 7918A5TRDULP4 Super Precision Angular Contact Spindle Bearing 90x125x18mm (Set of 2)

RHP 7918A5TRDULP4 Super Precision Angular Contact Spindle Bearing 90x125x18mm (Set of 2)
Regular price €879,75 ex VAT
Regular price Sale price €879,75 ex VAT
Sale Sold out

In stock

Price Break
3+ €668,57
5+ €631,01
10+ €623,50
25+ €615,98
49+ €608,47
74+ €600,96
99+ €563,40
199+ €555,89
249+ €548,38
499+ €540,86
999+ €525,84
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Bearing dimensions
d 90mm
D 125mm
B 18mm
r<sub>min</sub> 1.1mm
r1<sub>min</sub> 0.6mm
--- Loads angles and speeds
C<sub>r</sub> 41Kn
C<sub>or</sub> 43.5kN
Axial load Kn 33.5 kN
Contact angle 25 degrees
Factor f<sub>o</sub> -
Effective diameter 34.1mm
Max speed in grease 9400 rpm
Max speed in oil 14000 rpm
--- Fitting dimensions
d<sub>a min</sub> 97mm
D<sub>a max</sub> 118mm
D<sub>b max</sub> 120mm
r<sub>a max</sub> 1mm
r<sub>b max</sub> 0.6mm
Weight 1.12kg
