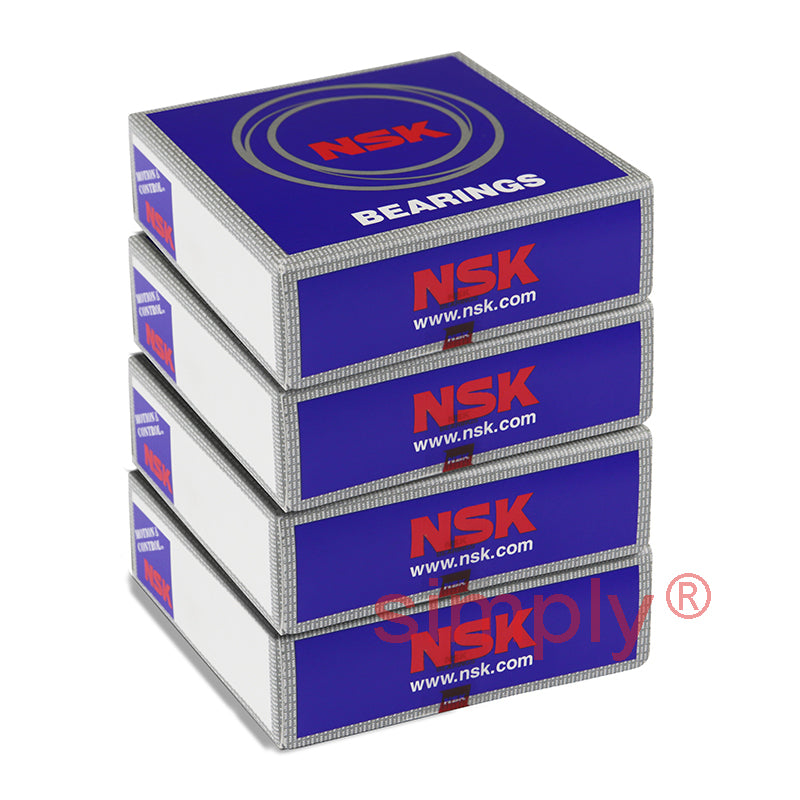

• NSK 7926A5TYNDBDLP3 Super Precision Angular Contact Spindle Bearing 130x180x24mm (Set of 4)
1 1

SKU: 7926A5TYNDBDLP3-NSK

NSK 7926A5TYNDBDLP3 Super Precision Angular Contact Spindle Bearing 130x180x24mm (Set of 4)

NSK 7926A5TYNDBDLP3 Super Precision Angular Contact Spindle Bearing 130x180x24mm (Set of 4)
€2.968,50 ex VAT
€2.968,50 ex VAT
Sale Sold out

In stock

Price Break
3+ €2.211,68
5+ €2.087,43
10+ €2.062,58
25+ €2.037,73
49+ €2.012,88
74+ €1.988,03
99+ €1.863,78
199+ €1.838,93
249+ €1.814,08
499+ €1.789,23
999+ €1.739,52

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
RGR72E2J9J
Brand / Quality:
NSK - High Quality
Inside Diameter:
130mm
Outside Diameter:
180mm
Width:
24mm
Seals / Shields:
None
Style:
Universal Matched Quad Bearing Set
Contact Angle:
25 Degree contact angle
Bearing Preload:
Light preload
Technical
--- Bearing dimensions
d 130mm
D 180mm
B 24mm
r<sub>min</sub> 1.5mm
r1<sub>min</sub> 1mm
--- Loads angles and speeds
C<sub>r</sub> 78Kn
C<sub>or</sub> 86kN
Axial load Kn 63.5 kN
Contact angle 25 degrees
Factor f<sub>o</sub> -
Effective diameter 48.1mm
Max speed in grease 6500 rpm
Max speed in oil 9700 rpm
--- Fitting dimensions
d<sub>a min</sub> 139mm
D<sub>a max</sub> 171mm
D<sub>b max</sub> 174mm
r<sub>a max</sub> 1.5mm
r<sub>b max</sub> 0.8mm
Weight 6.16kg
