SKU: 80-3-BB-NO30-RENOLD
Renold Blue Box 80-3-NO30 ANSI / AS Triplex Chain Double Cranked Link 1 inch Pitch
- Regular price
- €89.54 ex VAT
- Sale price
- €89,54
- Regular price
-
Not in stock
Quantity Price Breaks
2
€79.69
5
€75.21
10
€74.32
29
€73.42
49
€72.53
75
€71.63
100
€67.16
200
€66.26
250
€65.36
500
€64.47
1000
€62.68
SKU:
80-3-BB-NO30-RENOLD
Renold Blue Box 80-3-NO30 ANSI / AS Triplex Chain Double Cranked Link 1 inch Pitch
- Regular price
- €89.54 ex VAT
- Sale price
- €89,54
- Regular price
-
Description

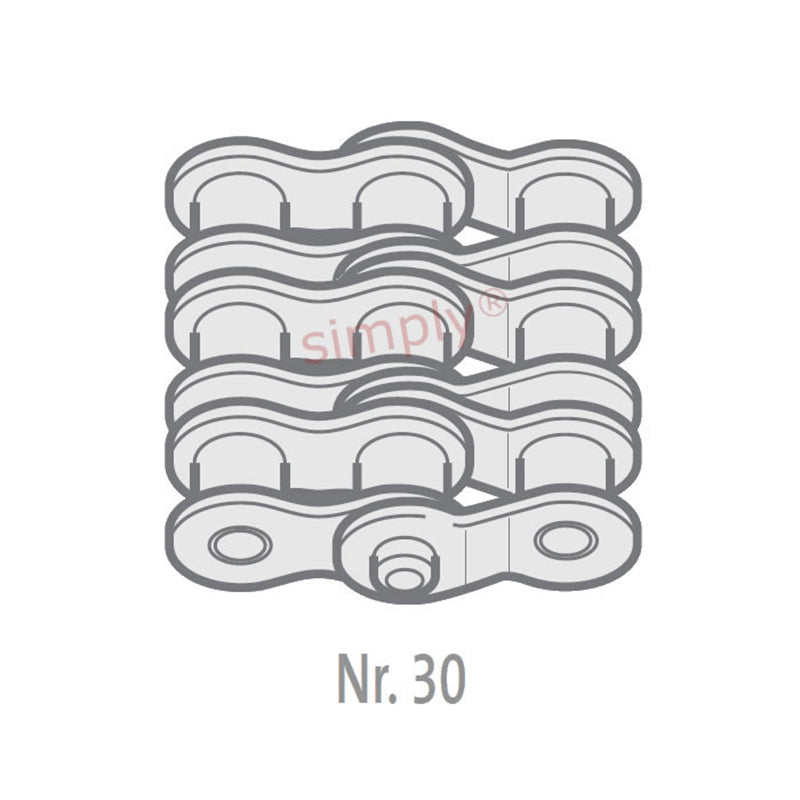

| Renold No. 30 ANSI Triplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin. |
Technical
| Pitch (A) | = | 1 inch |
| Pitch (A) | = | 25.4mm |
| Inside Width min (B) | = | 15.75mm |
| Roller Diameter max (C) | = | 15.88mm |
| Plate Height max (D) | = | 24.13mm |
| Plate Width Inner max (E) | = | 3.25mm |
| Plate Width Outer max (F) | = | 3.25mm |
| Pin Diameter max (G) | = | 7.94mm |
| Pin Length max (H2) | = | 91.2mm |
| Connecting Link Extension max (J) | = | 3mm |
| Transverse Pitch nom (K) | = | 29.29mm |
| ISO606 Tensile Strength min | = | 166800 N |
| Weight | = | 0.06kg/m |
