SKU: 8013-FAG

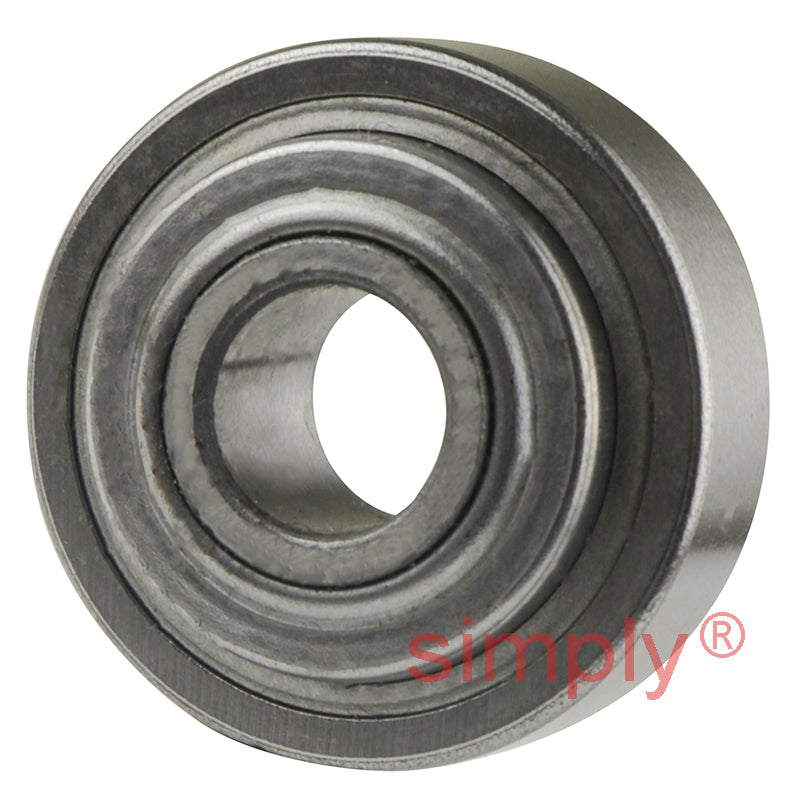

FAG 8013 Deep Groove Ball Bearing with Extended Inner Ring Felt Front Seal No Back Seal 13x32x12.7mm
FAG 8013 Deep Groove Ball Bearing with Extended Inner Ring Felt Front Seal No Back Seal 13x32x12.7mm
Out of stock
Description
Description
|
Specialist Ball bearings: These bearings consist of chrome steel ball bearings and raceways with an extended inner raceways, additionally the inner raceway is recessed on the back of the bearing. Please refer to the technical tab for dimensions. Benefits: Felt / Metal shielded on the front, extended inner race |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 13mm
- Outside Diameter:
- 32mm
- Width:
- 12.7mm = 0.5 (1/2) inch

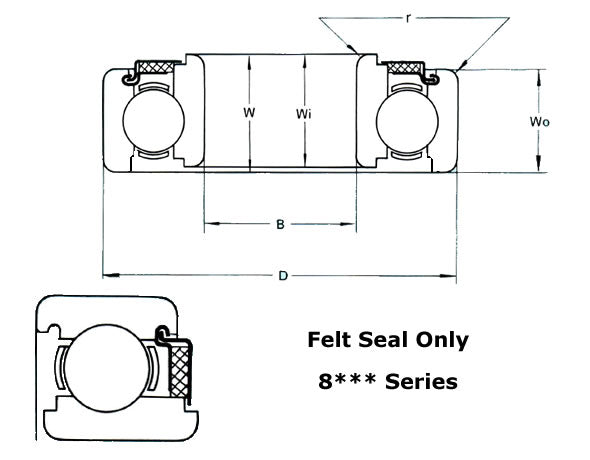

Technical
Technical
| B | 13mm = 0.5118 inch |
|---|---|
| D | 32mm = 1.2598 inch |
| W | 12.7mm = 0.5 inch |
| Tolerance +0.0000 to minus | 0.0003 inch |
| Wo | 0.394 inch |
| Wi | 0.48 inch |
| r | 0.025 inch |
| No. of balls | 7 |
| Ball diameter | 15/64 inch |
| Static load | 538 kN |
| Dynamic load | 310 kN |
| Weight | 0.038 kg |
