SKU: 8500-FAG

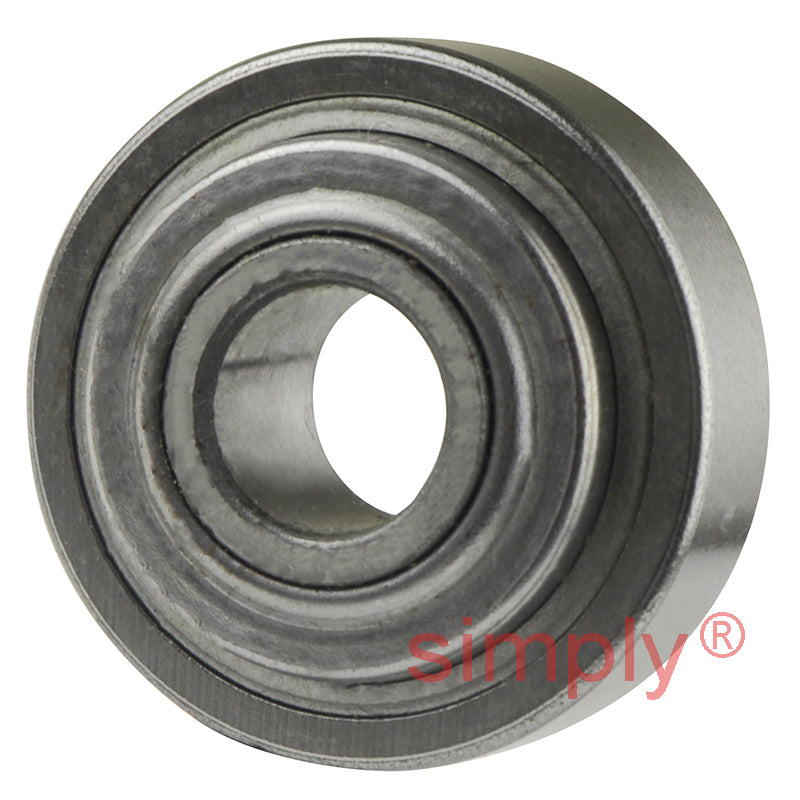

FAG 8500 Deep Groove Ball Bearing with Extended Inner Ring Felt Front Seal No Back Seal 10x30x12.7mm
FAG 8500 Deep Groove Ball Bearing with Extended Inner Ring Felt Front Seal No Back Seal 10x30x12.7mm
Equivalent to: SMT8500 ND8500
Out of stock
Description
Description
|
Specialist Ball bearings: These bearings consist of chrome steel ball bearings and raceways with an extended inner raceways, additionally the inner raceway is recessed on the back of the bearing. Please refer to the technical tab for dimensions. Benefits: Felt / Metal shielded on the front, extended inner race |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 30mm
- Width:
- 12.7mm = 0.5 (1/2) inch
Technical
Technical
| B | 10mm = 0.3937 inch |
|---|---|
| D | 30mm = 1.1811 inch |
| W | 12.7mm = 0.5 inch |
| Tolerance +0.0000 to minus | 0.0003 inch |
| Wo | 0.354 inch |
| Wi | 0.48 inch |
| r | 0.025 inch |
| No. of balls | 8 |
| Ball diameter | 3/16 inch |
| Static load | 400 kN |
| Dynamic load | 229 kN |
| Weight | 0.037 kg |
