SKU: A16M10-CHI

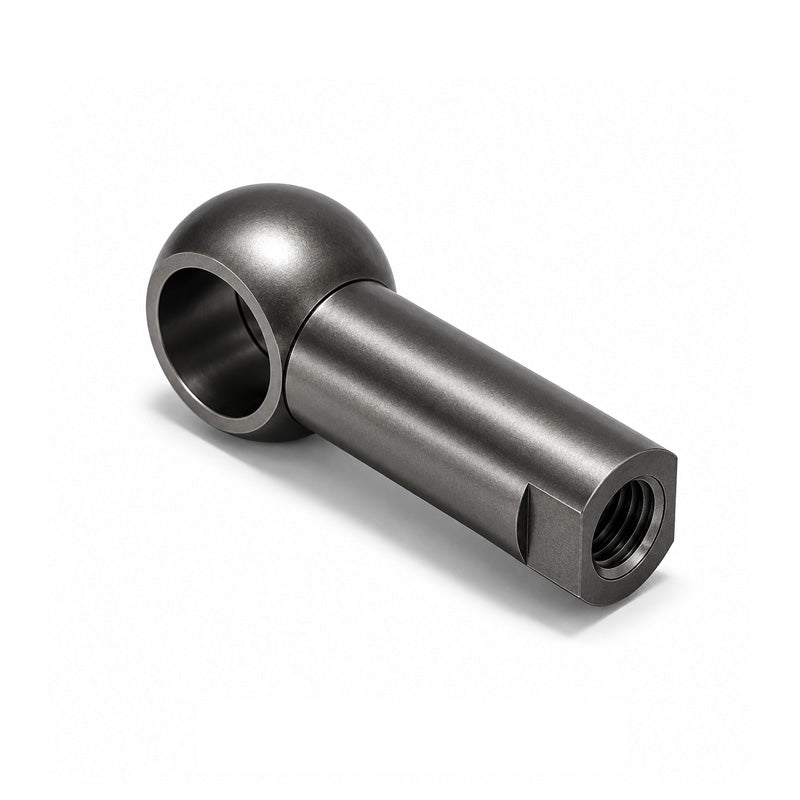

Chiavette A16 Right Hand Steel Ball Socket with Internal Snap Ring 16mm Ball Diameter M10 Thread - Allow 2-3 Days
Chiavette A16 Right Hand Steel Ball Socket with Internal Snap Ring 16mm Ball Diameter M10 Thread - Allow 2-3 Days
Out of stock
Share this product
Description
Description
Chiavette Steel Ball Sockets: Ball sockets are supplied as an individual component designed to form a ball joint assembly or for custom end fittings. These ball sockets are intended to be used alongside a compatible ball stud that when combined will produce a ball joint. Crafted with durability in mind, these ball sockets feature an internal snap ring for secure attachment, ensuring seamless integration into various mechanical systems. These ball sockets do NOT feature external holes for a safety clip to be mounted and therefore these ball sockets do NOT feature an integrated safety clip.
- Brand / Quality:
- Chiavette - High Quality
- Thread Size:
- M10
- Thread Direction:
- Right Hand
- Outside Diameter:
- 16mm
- Style:
- Standard
- Type:
- Without Safety Clip
Technical
Technical
| --- | Dimensions |
|---|---|
| Thread | Right Hand |
| d1 | 16mm |
| d2 | M10 |
| a | 35mm (+/-0.3) |
| d3 | 16mm (+/-0.5) |
| d4 | 24mm (+/-0.5) |
| e | 16mm |
| l1 | 22mm (+/-0.3) |
| h2 | 1.15mm (+/-0.5) |
| sw1 | 13mm |
| Weight | 0.057 kg |
