SKU: A19M14LH-CHI

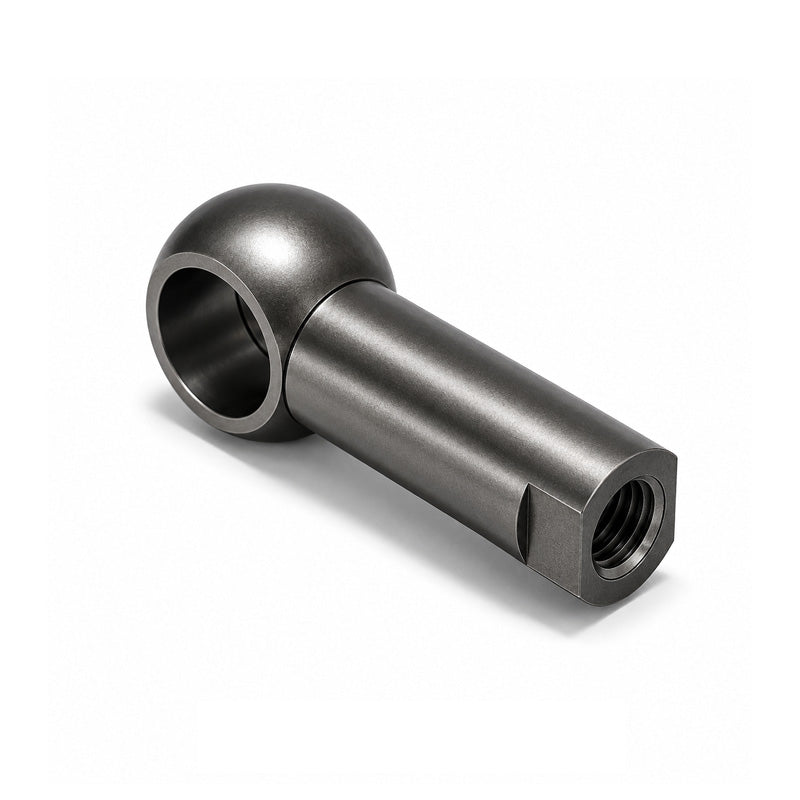

Chiavette A19 Left Hand Steel Ball Socket with Internal Snap Ring 19mm Ball Diameter M14 Thread - Allow 2-3 Days
Chiavette A19 Left Hand Steel Ball Socket with Internal Snap Ring 19mm Ball Diameter M14 Thread - Allow 2-3 Days
Out of stock
Share this product
Description
Description
Chiavette Steel Ball Sockets: Ball sockets are supplied as an individual component designed to form a ball joint assembly or for custom end fittings. These ball sockets are intended to be used alongside a compatible ball stud that when combined will produce a ball joint. Crafted with durability in mind, these ball sockets feature an internal snap ring for secure attachment, ensuring seamless integration into various mechanical systems. These ball sockets do NOT feature external holes for a safety clip to be mounted and therefore these ball sockets do NOT feature an integrated safety clip.
- Brand / Quality:
- Chiavette - High Quality
- Thread Size:
- M14
- Thread Direction:
- Left Hand
- Outside Diameter:
- 19mm
- Style:
- Standard
- Type:
- Without Safety Clip
Technical
Technical
| --- | Dimensions |
|---|---|
| Thread | Left Hand |
| d1 | 19mm |
| d2 | M14 |
| a | 45mm (+/-0.3) |
| d3 | 22mm (+/-0.5) |
| d4 | 30mm (+/-0.5) |
| e | 21.5mm |
| l1 | 28mm (+/-0.3) |
| h2 | 0.5mm (+/-0.5) |
| Weight | 0.125 kg |
