SKU: AI.0304-05.PL

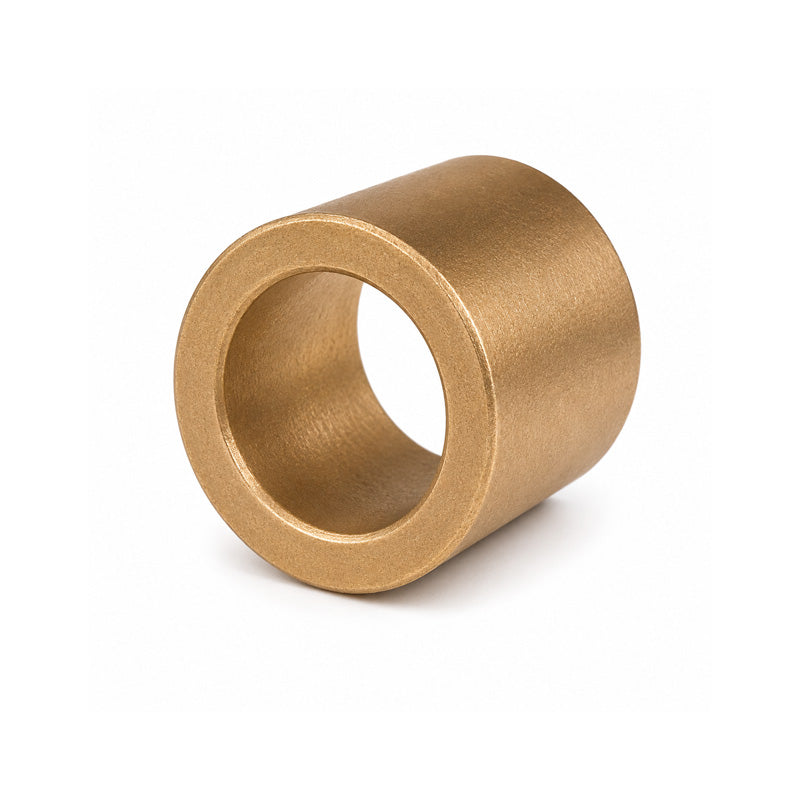

AI0304-05 Imperial Oil Filled Bronze Plain Bush 3/16x1/4x5/16 inch
Out of stock
Description
Oil Filled Bronze Bushes: Made in a variety of styles from bronze, graphite and several other metallic powders formed to shape by the sintering process and then soaked in oil. These simple bush-style bearings have an extended range of applications but are particularly suited to function in the following conditions; high/low temperatures1, high/low speed applications, corrosive environments, low maintenance applications etc.
1 These bushes are generally implanted with grease which has a temperature range of -20 to +90 deg C. Contact our Customer Support Team for more options to compensate for medium and wide range temperatures.
Benefits: Inexpensive, noiseless operation, self-lubrication, low maintenance costs.
- Brand / Quality:
- Oilite - High Quality
- Inside Diameter:
- 4.76mm = 0.187 (3/16) inch
- Outside Diameter:
- 6.35mm = 0.25 (1/4) inch
- Length:
- 7.93mm = 0.312 (5/16) inch
Technical
| Basic Dia d | 3/16 inch |
|---|---|
| Min I/D | 0.187 inch |
| Max I/d | 0.188 inch |
| Basic O/D | 1/4 inch |
| Min O/D | 0.251 inch |
| Max O/D | 0.252 inch |
| Length L | 5/16 inch |
| Length Min | 0.308 inch |
| Length Max | 0.318 inch |
| Max PV | 1.8 N/mm squared x m/s |
| Max Dynamic Load | 14 N/mm squared |
| Operating Temperature | -60 to 200 Deg C |
| Radial Crushing Strength | 160 K Min M/mm squared |
| Max Static Load | 50 N/mm squared |
| Max Sliding Speed | 5 m/s |
| Density | 6.6 g/cm cubed |
| Concentricity Max | 0.002 |
