SKU: AOHX3196G-SKF

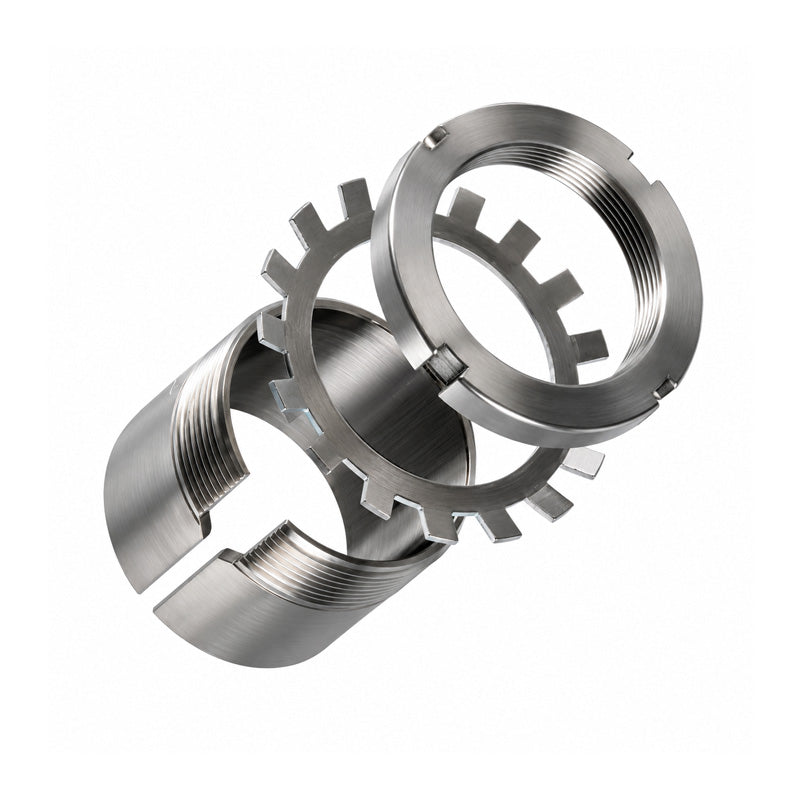

SKF AOHX3196G Withdrawal Sleeve for 460mm shaft

Name: SKF AOHX3196G Withdrawal Sleeve for 460mm shaft
Brand: SKF
SKU: AOHX3196G-SKF
Availability: OutOfStock

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Withdrawal Sleeves: Can be used to mount bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position. Differing from adaptor sleeves, they are pushed into the bearing by a locknut on the threaded shaft, they then permit a larger locknut to be used to withdraw the sleeve from within the bearing for ease of dismantling
Benefits: Re-useable, adjustable, positive location, easy to dismount

Brand / Quality:: SKF - High Quality
Inside Diameter:: 460mm
Outside Diameter:: 480mm
Width:: 295mm

Technical

---	Dimensions
d1	460mm
d	480mm
B1	295mm
B2	307mm
G	Thread 500x5mm
G1	45mm
G2	G1/4mm
A	9mm
Weight	63 kg
---	Assembly Parts
Sleeve	AOHX3196G
Nut	HM31/500
Hydraulic Nut	HMV100E
---	Matching Spherical Roller Bearings
Bearing No.	<a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=23196K+taper>23196K</a>
---	Matching Carb Toroidal Bearings
Bearing No.	<a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C3196KMB+taper>C3196KMB</a>
