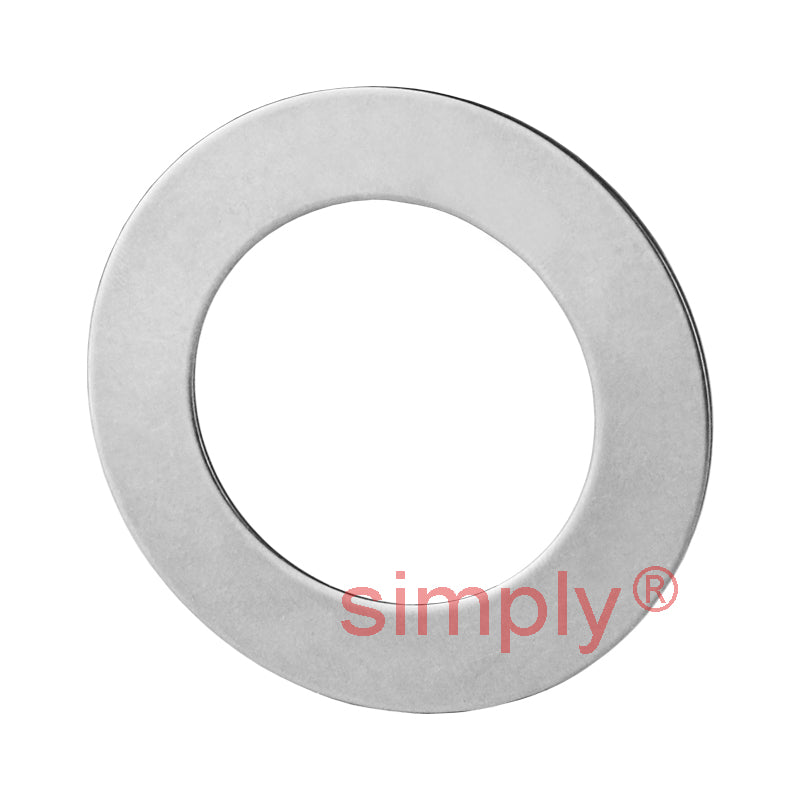

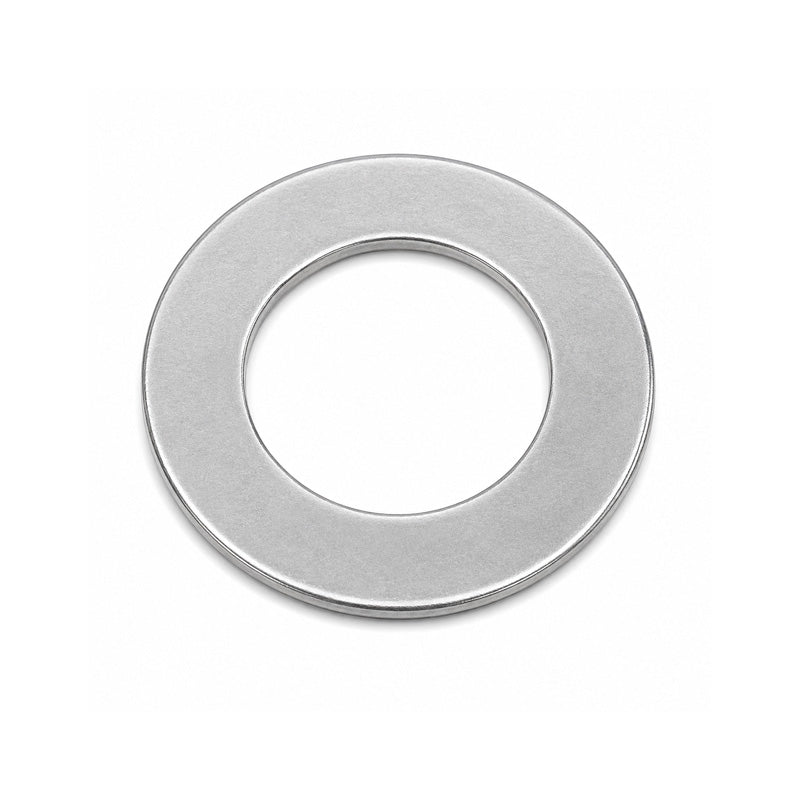

• AS75100 Major Brand Thrust Washer Series AS 75x100x1mm
1 1

SKU: AS75100-MB

AS75100 Major Brand Thrust Washer Series AS 75x100x1mm

AS75100 Major Brand Thrust Washer Series AS 75x100x1mm
€7,90 ex VAT
€7,90 ex VAT
Sale Sold out

In stock

Price Break
10+ €6,02
19+ €5,68
29+ €5,61
39+ €5,55
49+ €5,48
74+ €5,41
99+ €5,07
199+ €5,00
249+ €4,94
499+ €4,87
999+ €4,73

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
AS Series Thrust Washers: Made of spring steel (equivalent to AISI 1074 / SAE 5165) these thrust washers are hardened and polished and are only 1mm thick. These washers enable a very economic bearing arrangements and serve as both shaft and housing raceways having moderate stiffness and running accuracy.
Benefits: Economical in the use of space, accurately machined and polished, hardened spring steel, moderate running accuracy and stiffness, inexpensive.
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
75mm
Outside Diameter:
100mm
Width:
1mm
Technical
d 75mm
d1 100mm
D 100mm
D1 77mm
B 1mm
r1r2 1mm
Material Spring Steel (AISI 1074 / SAE 5165)
Weight 140 g
