SKU: ASFD207-NTN

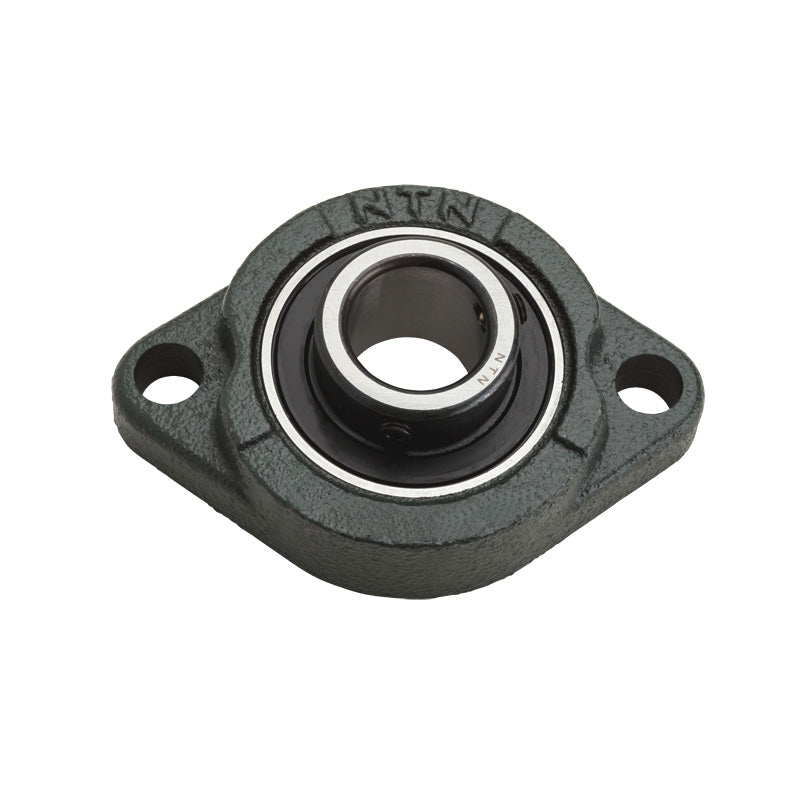

NTN ASFD207 Metric Two Bolt Oval Cast Iron Flange Housing with 35mm Bore Insert - Allow 2-3 Days
- Regular price
- €41.42 ex VAT
- Sale price
- €41,42
- Regular price
-
Not in stock
Quantity Price Breaks
3
€36.86
4
€34.79
9
€34.38
19
€33.96
49
€33.55
99
€33.14
499
€31.07
999
€30.65
1999
€30.24
2999
€29.82
4999
€28.99
SKU:
ASFD207-NTN
NTN ASFD207 Metric Two Bolt Oval Cast Iron Flange Housing with 35mm Bore Insert - Allow 2-3 Days
- Regular price
- €41.42 ex VAT
- Sale price
- €41,42
- Regular price
-
Description
ASFD200 Series 2 Bolt Cast Iron Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| Shaft diameter | = | 35mm |
| H | = | 125mm |
| J | = | 100mm |
| A< | = | sub> |
| 2< | = | /sub> |
| = | 12.5mm | |
| A | = | 22mm |
| N | = | 12mm |
| L | = | 94mm |
| A< | = | sub> |
| 0< | = | /sub> |
| = | 38mm | |
| B | = | 34mm |
| S | = | 8.5mm |
| Fixing bolt | = | M10 |
| Mass | = | 0.9 kg |
