SKU: ASPFL205-100-NTN

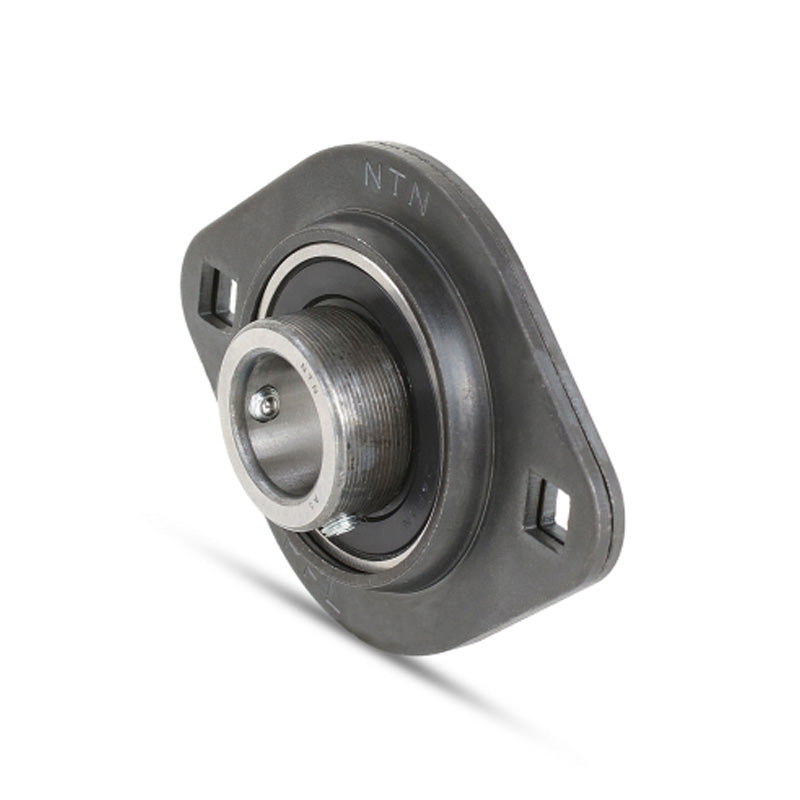

NTN ASPFL205-100 Oval 2 Bolt Pressed Steel Bearing Housing with 1 inch Insert
NTN ASPFL205-100 Oval 2 Bolt Pressed Steel Bearing Housing with 1 inch Insert
Regular price
€23,77
ex VAT
Regular price
Sale price
€23,77
ex VAT
In stock
Price Break
3+
€18,07
4+
€17,05
9+
€16,85
19+
€16,65
49+
€16,44
99+
€16,24
499+
€15,23
999+
€15,02
1999+
€14,82
2999+
€14,62
4999+
€14,21
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
2 Bolt Oval Pressed Steel Bearing Housings: Of galvanized steel construction these housings are a simple economical housed bearing solution. Designed for light to medium duty applications they can be bolted to sheet metal frameworks or even timber if required. The supplied sealed bearing insert has grub screws for securing to the shaft. Once assembled the bearing remains rigid in the housing. The inserts are also available separately. |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 25.4mm = 1 Inch
- Style:
- ASPFL
- Bolt Hole Centres:
- 2-63/64 inch
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 1 inch |
| H | 3-3/4 inch |
| J | 2-63/64 inch |
| A<sub>1</sub> | 0.157 inch |
| N | 23/64 inch |
| A | 23/32 inch |
| L | 2-25/32 inch |
| B | 1.063 inch |
| S | 0.295 inch |
| H<sub>1</sub> min | 2-23/64 inch |
| Fixing bolt | 5/16 inch |
| --- | Load rating |
| Max load recommended radial | 880 lbf |
| Max load recommended axial | 440 lbf |
| --- | Unit information |
| Mass | 0.7 lbs |
