SKU: AXK140180-MB

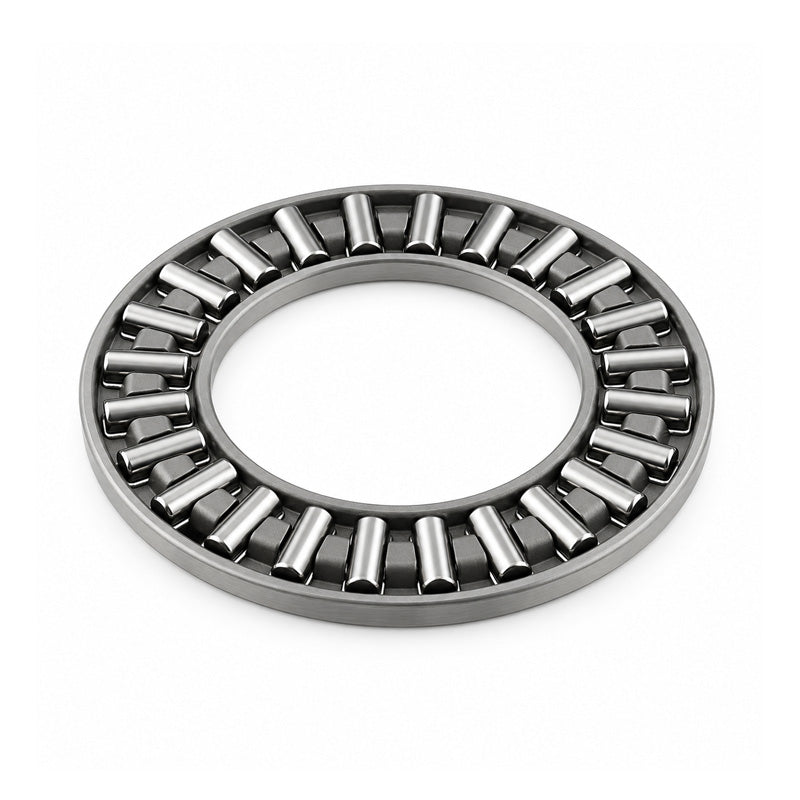

AXK140180 Major Branded Needle Roller Cage 140x180x5mm
- Regular price
- €144.73 ex VAT
- Sale price
- €144,73
- Regular price
-
ex VAT
In stock
Quantity Price Breaks
10
€128.81
19
€121.57
29
€120.13
39
€118.68
49
€117.23
74
€115.78
99
€108.55
199
€107.10
249
€105.65
499
€104.21
999
€101.31
Description
|
AXK Series Needle Roller thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with either the AS, LS or GS series thrust washers which are supplied separately, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing |
Technical
| d | = | 140mm |
| D | = | 180mm |
| Dw | = | 5mm |
| Ea | = | 146mm |
| Eb | = | 177mm |
| Dynamic load | = | 116000 N |
| Static load | = | 900000 N |
| Fatigue load limit Pu | = | 98600 N |
| Speed in grease | = | 670 rpm |
| Speed in oil | = | 900 rpm |
| Weight (assembly) | = | 220 g |
| d1 | = | 178mm |
| D | = | 180mm |
| D1 | = | 142mm |
| B | = | 9.5mm |
