SKU: AXK3047-MB

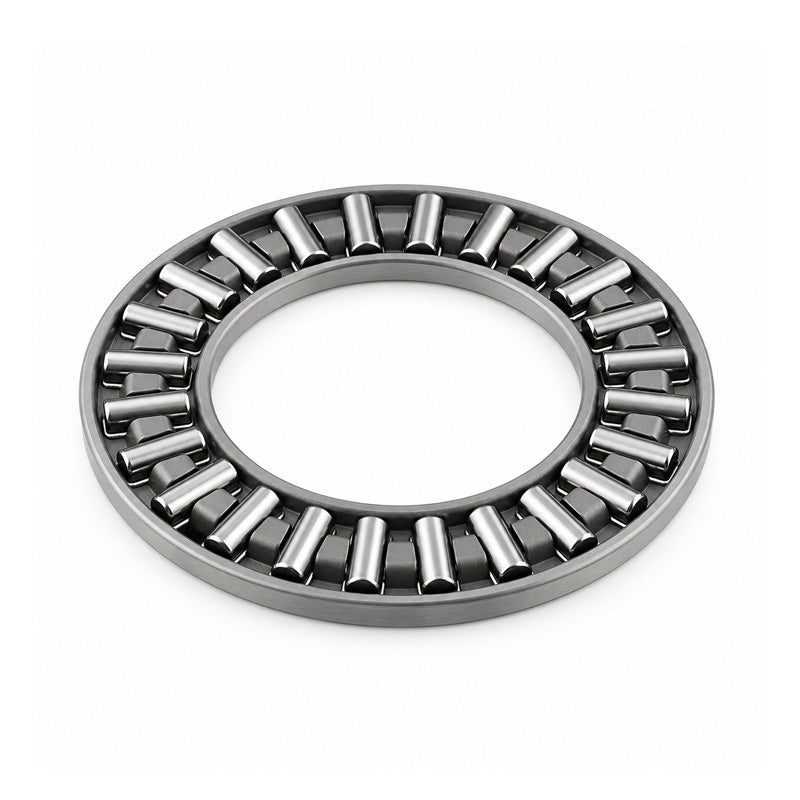

AXK3047 Major Branded Needle Roller Cage 30x47x2mm
- Regular price
- €3.83 ex VAT
- Sale price
- €3,83
- Regular price
-
In stock
Quantity Price Breaks
10
€3.41
19
€3.22
29
€3.18
39
€3.14
49
€3.10
74
€3.06
99
€2.87
199
€2.83
249
€2.80
499
€2.76
999
€2.68
SKU:
AXK3047-MB
AXK3047 Major Branded Needle Roller Cage 30x47x2mm
- Regular price
- €3.83 ex VAT
- Sale price
- €3,83
- Regular price
-
Description
|
AXK Series Needle Roller thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with either the AS, LS or GS series thrust washers which are supplied separately, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing |
Technical
| d | = | 30mm |
| D | = | 47mm |
| Dw | = | 2mm |
| Ea | = | 34mm |
| Eb | = | 46mm |
| Dynamic load | = | 15000 N |
| Static load | = | 72000 N |
| Fatigue load limit Pu | = | 8000 N |
| Speed in grease | = | 2000 rpm |
| Speed in oil | = | 3000 rpm |
| Weight (assembly) | = | 8 g |
| d1 | = | 47mm |
| D | = | 47mm |
| D1 | = | 32mm |
| B | = | 3mm |
