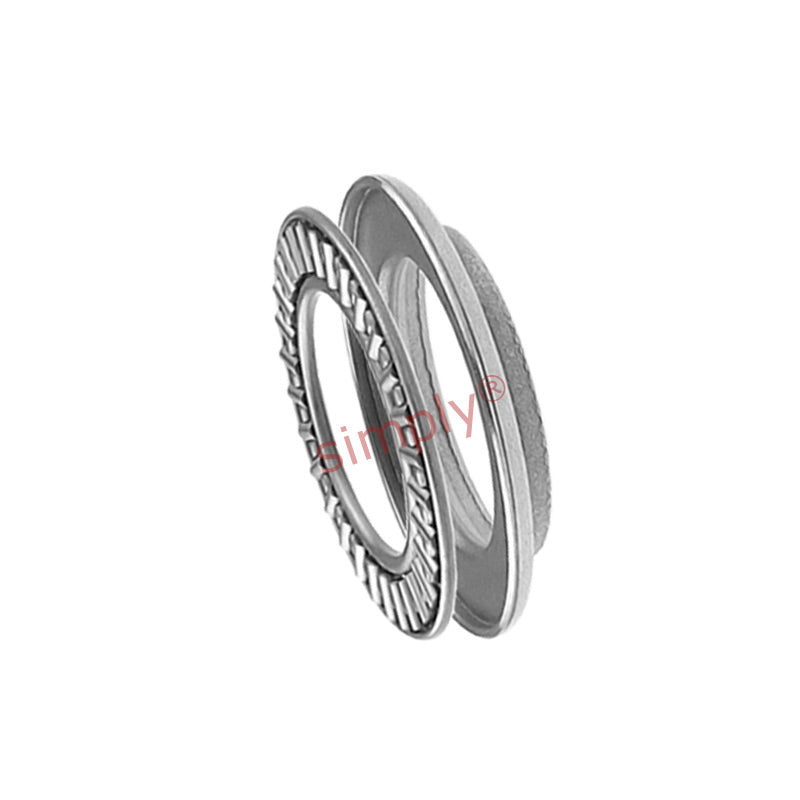

INA / SKF AXW35 Thrust Race with Centering Spigot 35x55x3.2mm
INA / SKF AXW35 Thrust Race with Centering Spigot 35x55x3.2mm
Regular price
€13,29
ex VAT
Regular price
Sale price
€13,29
ex VAT
In stock
Price Break
10+
€10,10
19+
€9,53
29+
€9,42
39+
€9,31
49+
€9,19
74+
€9,08
99+
€8,51
199+
€8,40
249+
€8,28
499+
€8,17
999+
€7,94
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
AXW Series Spigot Alignment Needle Thrust Bearings: Similar to the AXK needle thrust bearing this series has a centre spigot to enable it to be aligned in a bore of a housing, they can be combined with radial needle roller bearings to accommodate radial and axial loads simultaneously and are generally used in conjunction with the AS, LS and GS series washers. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 55mm
- Width:
- 3.2mm
Technical
Technical
| Inside diameter | 35mm |
|---|---|
| Outside diameter | 55mm |
| B | 3.2mm |
| B1 | 4mm |
| D1 | 42mm |
| Ea | 39mm |
| Eb | 51mm |
| Weight | 27 g |
| Dynamic load | 17800 N |
| Static load | 81000 N |
| Fatigue load limit | 8300 N |
| Limiting speed | 6500 rpm |
| Reference speed | 3100 rpm |
| Bearing washer to use | <a href="advanced_search_result.php?search_in_description=0&keywords=AS3552">Click Here AS3552 |
