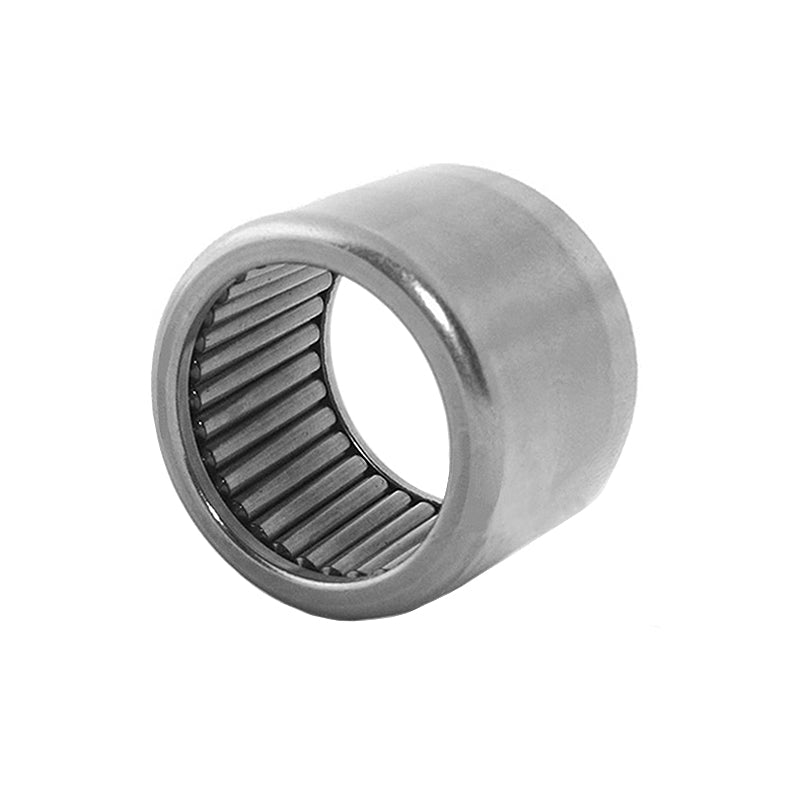

• Major Branded B1812 Imperial Drawn Cup Open End Type Full Complement Needle Roller Bearing 1-1/8x1-3/8x3/4 inch
1 1

SKU: B-1812

Major Branded B1812 Imperial Drawn Cup Open End Type Full Complement Needle Roller Bearing 1-1/8x1-3/8x3/4 inch

Major Branded B1812 Imperial Drawn Cup Open End Type Full Complement Needle Roller Bearing 1-1/8x1-3/8x3/4 inch
€15,90 ex VAT
€15,90 ex VAT
Sale Sold out

In stock

Price Break
5+ €12,09
9+ €11,41
19+ €11,27
29+ €11,14
49+ €11,00
74+ €10,87
99+ €10,19
199+ €10,05
249+ €9,92
499+ €9,78
999+ €9,51

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Full Complement Needle Roller Bearings: Of similar construction to the common HK and TA series needle roller bearings but having no cage and twice the number of rollers occupying the same space to permit greater load carrying capacity. Often referred to as crowded roller construction.
Benefits: Compact space saving design, High load capacity.
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
28.58mm = 1.125 (1-1/8) inch
Outside Diameter:
34.93mm = 1.375 (1-3/8) inch
Width:
19.05mm = 0.75 (3/4) inch
Technical
Inside Diameter 28.58mm = 1.125 inch
Outside Diameter 34.93mm = 1.375 inch
Width 19.05mm = 0.75 inch
Dynamic load C 27.3 kN
Static load Co 58.3 kN
S max 28.575mm = 1.125 inch
S min 28.562mm = 1.1245 inch
H max 34.938mm = 1.3755 inch
H min 34.912mm = 1.3745 inch
