SKU: B-2616
Major Branded B2616 Imperial Drawn Cup Open End Type Full Complement Needle Roller Bearing 1-5/8x2x1 inch
- Regular price
- €26.63 ex VAT
- Sale price
- €26,63
- Regular price
-
In stock
Quantity Price Breaks
5
€23.70
9
€22.37
19
€22.10
29
€21.84
49
€21.57
74
€21.30
99
€19.97
199
€19.71
249
€19.44
499
€19.17
999
€18.64
SKU:
B-2616
Major Branded B2616 Imperial Drawn Cup Open End Type Full Complement Needle Roller Bearing 1-5/8x2x1 inch
- Regular price
- €26.63 ex VAT
- Sale price
- €26,63
- Regular price
-
Description

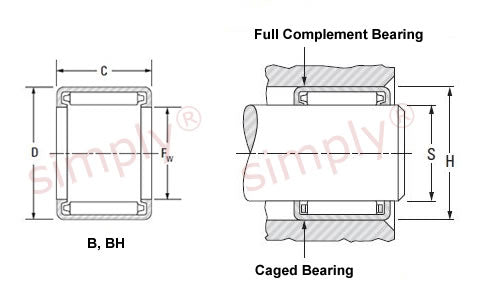

Full Complement Needle Roller Bearings: Of similar construction to the common HK and TA series needle roller bearings but having no cage and twice the number of rollers occupying the same space to permit greater load carrying capacity. Often referred to as crowded roller construction. |
Technical
| Inside Diameter | = | 41.28mm = 1.625 inch |
| Outside Diameter | = | 50.8mm = 2 inch |
| Width | = | 25.4mm = 1 inch |
| Dynamic load C | = | 51.6 kN |
| Static load Co | = | 112 kN |
| S max | = | 41.275mm = 1.625 inch |
| S min | = | 41.262mm = 1.6245 inch |
| H max | = | 50.813mm = 2.0005 inch |
| H min | = | 50.787mm = 1.9995 inch |
