SKU: B19M14-CHI

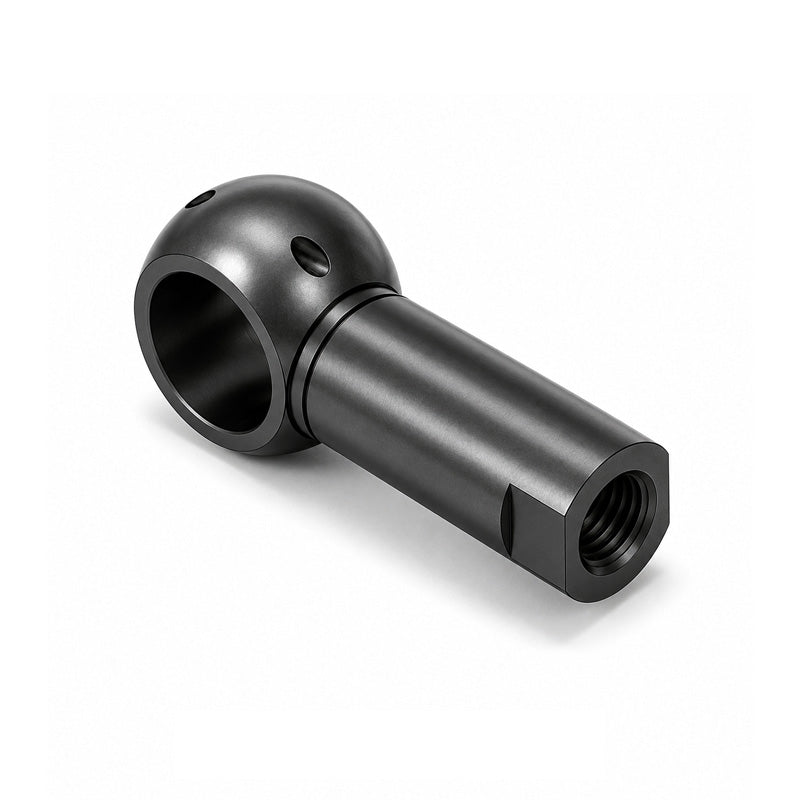

Chiavette B19 Right Hand Steel Ball Socket with Internal Snap Ring and Holes for Safety Clip 19mm Ball Diameter M14 Thread - Allow 2-3 Days
Chiavette B19 Right Hand Steel Ball Socket with Internal Snap Ring and Holes for Safety Clip 19mm Ball Diameter M14 Thread - Allow 2-3 Days
Out of stock
Share this product
Description
Description
Chiavette Steel Ball Sockets: Ball sockets are supplied as an individual component designed to form a ball joint assembly or for custom end fittings. These ball sockets are intended to be used alongside a compatible ball stud that when combined will produce a ball joint. Crafted with durability in mind, these ball sockets feature an internal snap ring for secure attachment, ensuring seamless integration into various mechanical systems. These particular types of ball sockets feature an external groove to accommodate a compatible safety clip which ensures secure attachment.
- Brand / Quality:
- Chiavette - High Quality
- Thread Size:
- M14
- Thread Direction:
- Right Hand
- Outside Diameter:
- 19mm
- Style:
- Standard
- Type:
- With Safety Clip
Technical
Technical

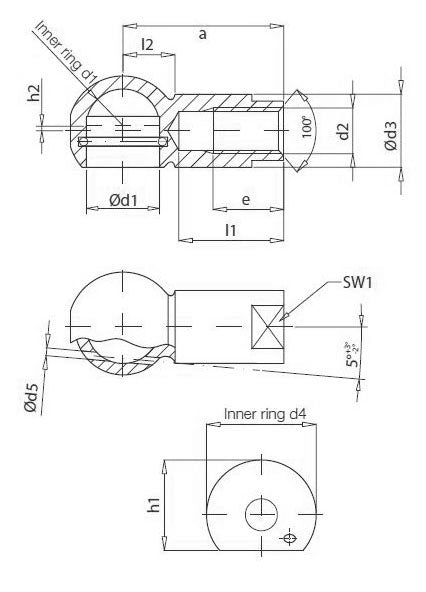

| --- | Dimensions |
|---|---|
| Thread | Right Hand |
| d1 | 19mm |
| d2 | M14 |
| a | 45mm (+/-0.3) |
| d3 | 22mm (+/-0.5) |
| d4 | 30mm (+/-0.5) |
| e | 21.5mm |
| l1 | 28mm (+/-0.3) |
| h2 | 0.5mm (+/-0.5) |
| l2 | 12.5mm (+/-0.3) |
| sw1 | -mm |
| Weight | 0.125 kg |
