SKU: BB-6202-B180-10-ES-C

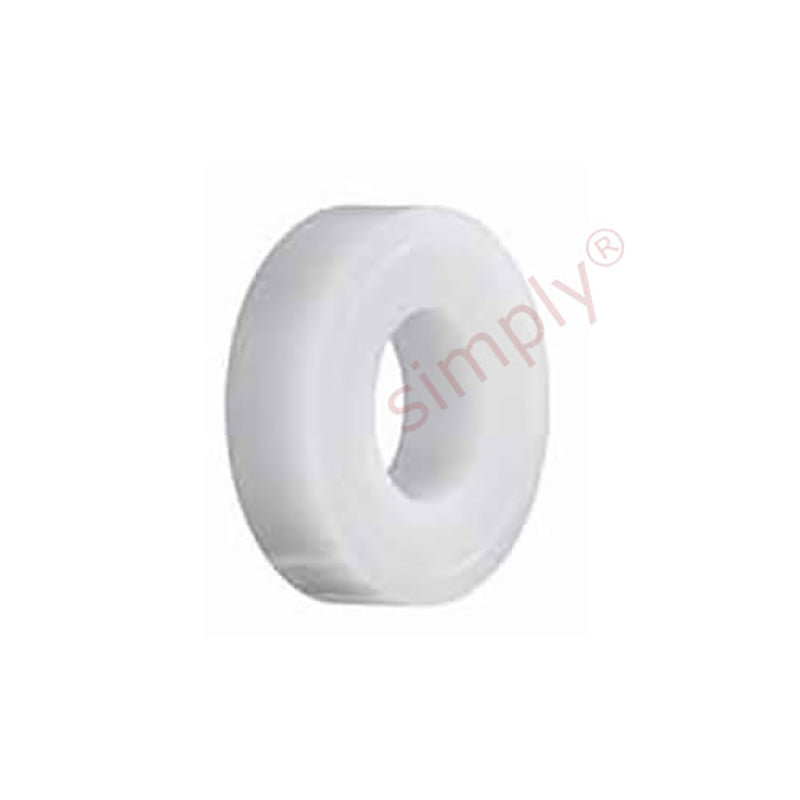

xiros xirodur BB6202B18010ESC Polymer Ball Bearing with PA Cage and Stainless Steel Balls and Cover Plate 15x35x11mm
xiros xirodur BB6202B18010ESC Polymer Ball Bearing with PA Cage and Stainless Steel Balls and Cover Plate 15x35x11mm
Regular price
€18,06
ex VAT
Regular price
Sale price
€18,06
ex VAT
In stock
Price Break
5+
€13,73
9+
€12,95
29+
€12,80
49+
€12,65
99+
€12,49
199+
€12,34
299+
€11,57
399+
€11,41
499+
€11,26
749+
€11,10
999+
€10,80
Quantity
Couldn't load pickup availability
Description
Description
|
IGUS xiros® xirodur® B180 Polymer Ball Bearings: This radial deep groove ball bearings consists of a polymer cage, stainless steel balls and a cover plate. They are for use with temperatures up to +80 deg C. The specially developed material xirodur® B180 provides significantly longer life times at a lower cost. These bearings are ideal for applications that require lubricant-free ball bearings and maintenance-free dry operation. They are also suitable for applications which require corrosion resistance, non-magnetic ball bearings or a light weight bearing. Benefits: Lubrication- and maintenance-free, washable, corrosion-resistant, low friction. |
- Brand / Quality:
- Igus - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 35mm
- Width:
- 11mm
- Seals / Shields:
- Cover Plate
- Clearance:
- * Standard
Technical
Technical
| d1 | 15mm |
|---|---|
| d2 | 35mm |
| b | 11mm |
| Max static axial load | 338 N |
| Static load capacity | 146 N |
| Dynamic load capacity | 196 N |
| Max speed | 1600 rpm |
| Race | B180 |
| Cage | PA |
| Ball material | Stainless Steel |
