SKU: BB-624-B180-10-ES

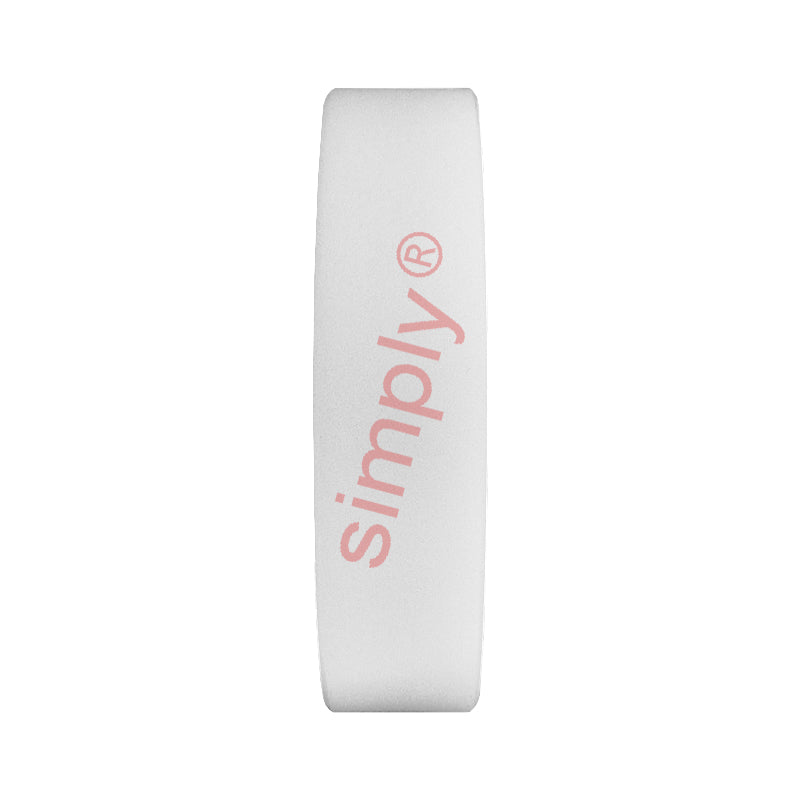

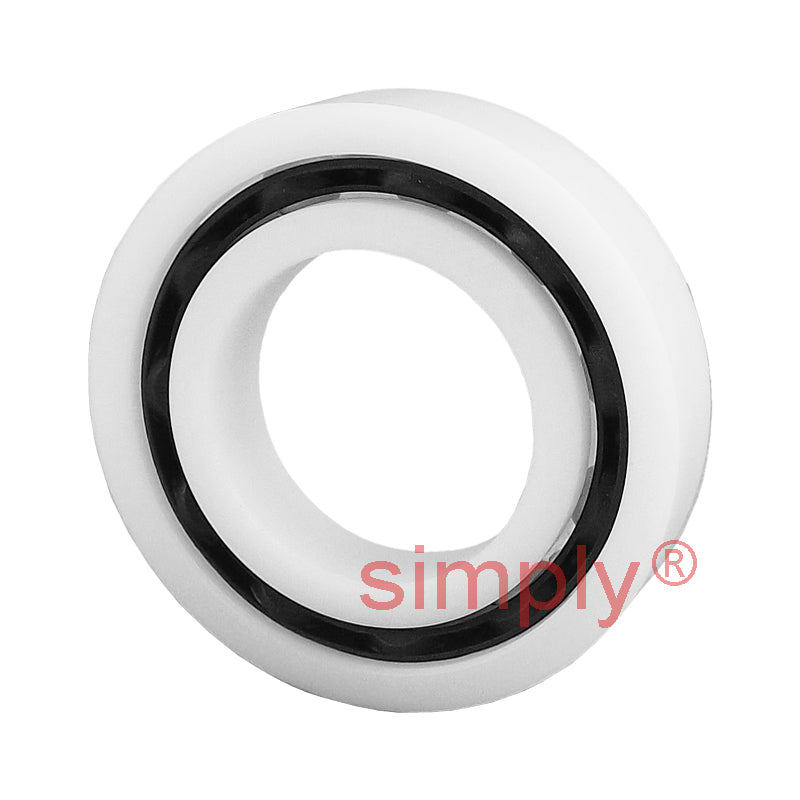

xiros xirodur BB624B18010ES Open Type Radial Groove Ball Bearing with PA Cage and Stainless Steel Balls 4x13x5mm
xiros xirodur BB624B18010ES Open Type Radial Groove Ball Bearing with PA Cage and Stainless Steel Balls 4x13x5mm
Regular price
€8,34
ex VAT
Regular price
Sale price
€8,34
ex VAT
In stock
Price Break
5+
€6,34
9+
€5,98
29+
€5,91
49+
€5,84
99+
€5,77
199+
€5,70
299+
€5,34
399+
€5,27
499+
€5,20
749+
€5,13
999+
€4,99
Quantity
Couldn't load pickup availability
Description
Description
|
IGUS xiros® xirodur® B180 Polymer Ball Bearings: These open type radial deep groove ball bearings consist of polymer cages and stainless steel balls. They are for use with temperatures up to +80 deg C. The specially developed material xirodur® B180 provides significantly longer life times at a lower cost. These bearings are ideal for applications that require lubricant-free ball bearings and maintenance-free dry operation. They are also suitable for applications which require corrosion resistance, non-magnetic ball bearings or a light weight bearing. Benefits: Lubrication- and maintenance-free, washable, corrosion-resistant, electrically insulating. |
- Brand / Quality:
- Igus - High Quality
- Inside Diameter:
- 4mm
- Outside Diameter:
- 13mm
- Width:
- 5mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d1 | 4mm |
|---|---|
| d2 | 13mm |
| b1 | 5mm |
| Max static load capacity | 42 N |
| Static load capacity | 33 N |
| Dynamic load capacity | 45 N |
| Max speed | 3700 rpm |
| Race | B180 |
| Cage | PA |
| Ball material | Stainless Steel |
