Durbal BEFN06-20-501 Maintenance Required Right Hand Metric Steel Female Rod End M6 Thread
- Regular price
- €24.22 ex VAT
- Sale price
- €24,22
- Regular price
-
Quantity Price Breaks
Durbal BEFN06-20-501 Maintenance Required Right Hand Metric Steel Female Rod End M6 Thread
- Regular price
- €24.22 ex VAT
- Sale price
- €24,22
- Regular price
-
Description
DURBAL Heavy-Duty Maintenance Required Female Rod Ends with Pressed Spherical-Plain Bearing: Threaded female rod end consisting of a galvanised, forged, tempered steel housing with a bearing brass outer ring with oil groove and drill holes and hard chromium plated steel joint ball. Primary application in situations of alternating stresses or impact loads and preferred in situations of large swivelling movements. Joint ball made of ball bearing steel, hardened, ground, polished and hard chromium plated, ensuring reliable corrosion protection. made of forged steel, tempered, extremely high loads resistant and protected against corrosion by galvanisation. Rod ends from size 6-30 can be greased subsequently by means of a funnel-type lubrication nipple. Connection dimensions in accordance with DIN ISO 8139 for pneumatic cylinders. Temperature range: -40 deg C to +110 deg C.

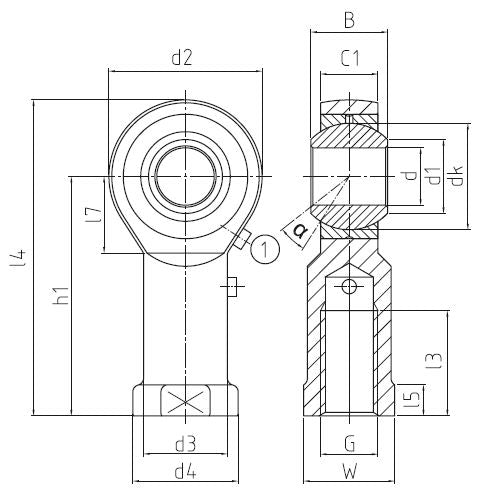

Technical
| Thread Direction | = | -501 (Right)d |
| 6mm | = | G (Thread) |
| M6mm | = | B |
| 9mm | = | C1 |
| 6.75mm | = | h1 |
| 30mm | = | d1 |
| 8.9mm | = | d2 |
| 20mm | = | d3 |
| 10mm | = | d4 |
| 13mm | = | dk |
| 12.65mm | = | l3 |
| 12mm | = | l4 |
| 40mm | = | l5 |
| 5mm | = | l7 |
| 10mm | = | W |
| 11mm | = | tilt angle & |
| alpha | = | |
| 13 deg | = | weight |
| 0.022kg | = | basic load rating dyn C |
| 3 kN | = | basic load rating stat Co |
| 7.5 kN | = | radial clearance CN |
| 20-60 & | = | micro |
| m | = | N/A |
