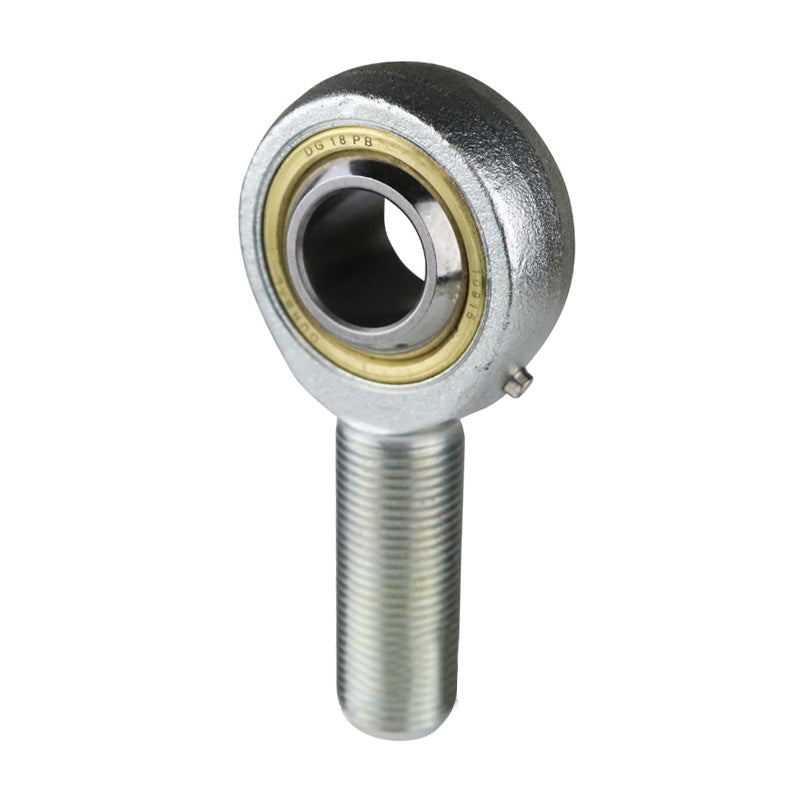

Durbal BEMN12-20-501 Maintenance Required Right Hand Metric Steel Male Rod End M12 Thread

DURBAL Heavy-Duty Maintenance Required Male Rod Ends with Pressed Spherical-Plain Bearing: Threaded male rod end consisting of a galvanised, forged, tempered steel housing with a bearing brass outer ring with oil groove and drill holes and hard chromium plated steel joint ball. Primary application in situations of alternating stresses or impact loads and preferred in situations of large swivelling movements. Joint ball made of ball bearing steel, hardened, ground, polished and hard chromium plated, ensuring reliable corrosion protection. made of forged steel, tempered, extremely high loads resistant and protected against corrosion by galvanisation. Rod ends from size 6-30 can be greased subsequently by means of a funnel-type lubrication nipple. Temperature range: -40 deg C to +110 deg C.

Brand / Quality:

Durbal - High Quality

Thread Size:

M12

Thread M / F:

Male

Thread Direction:

Right Hand

Inside Diameter:

12mm
