SKU: BF16-MB

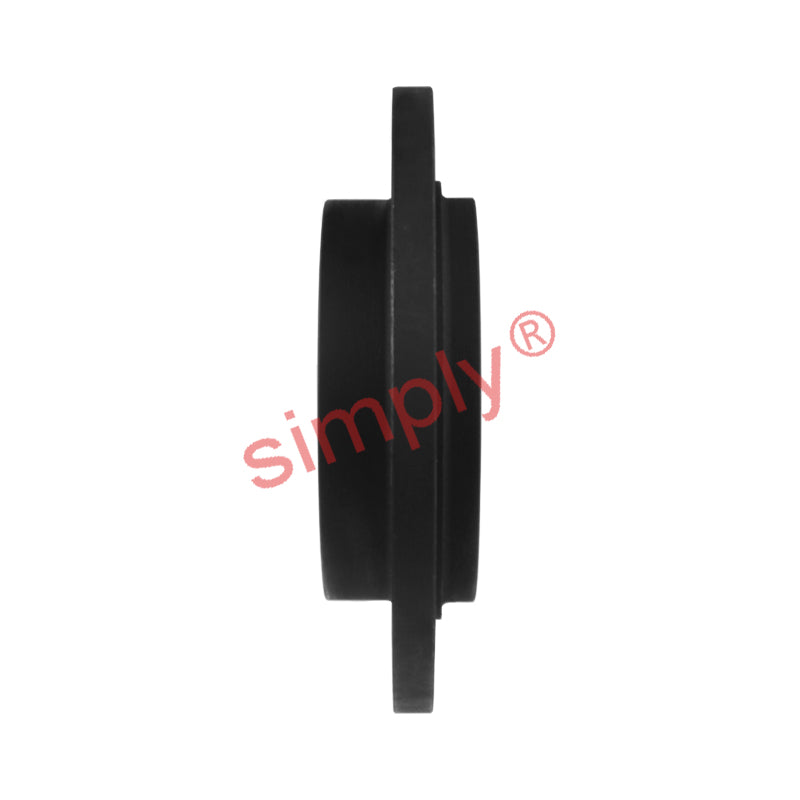

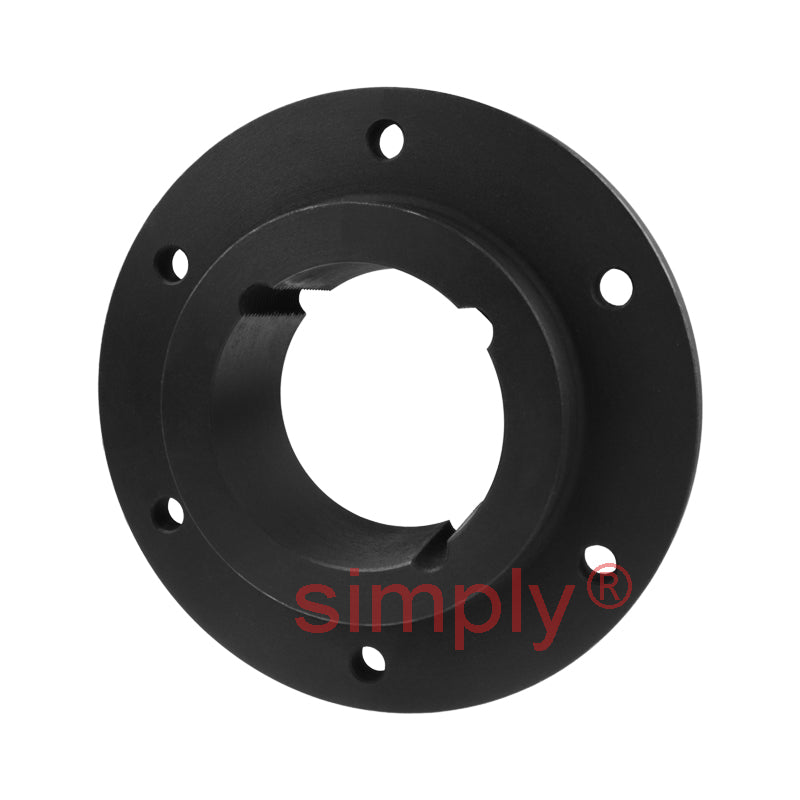

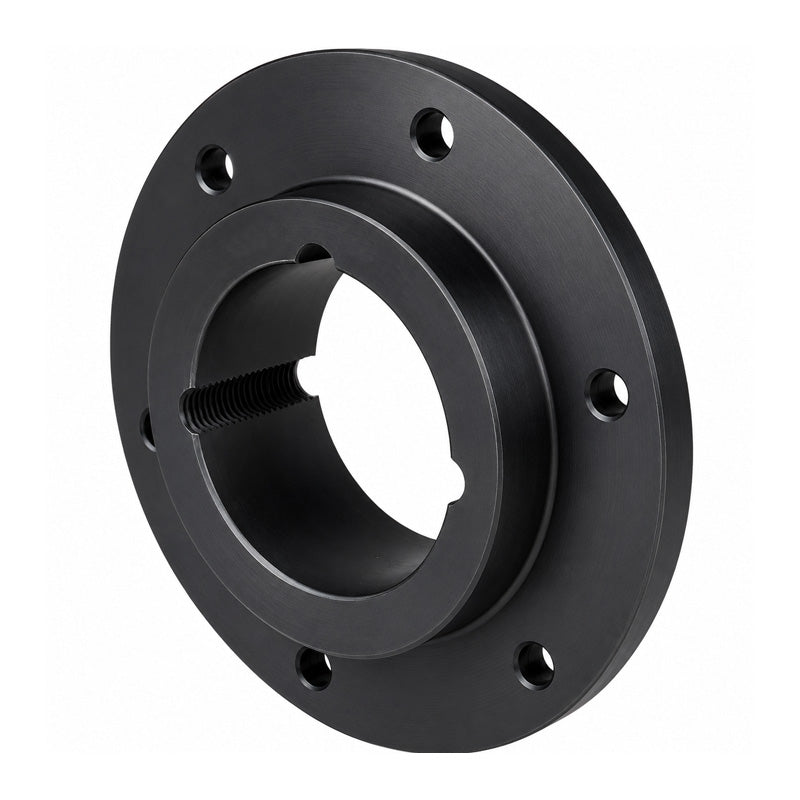

Major Branded BF16 Cast Iron Bolt on Hub Shaft Fixing with Tapered Bore
- Regular price
- €23.02 ex VAT
- Sale price
- €23,02
- Regular price
-
In stock
Quantity Price Breaks
3
€20.49
5
€19.34
9
€19.11
19
€18.88
49
€18.65
74
€18.42
99
€17.27
199
€17.03
249
€16.80
499
€16.57
999
€16.11
SKU:
BF16-MB
Major Branded BF16 Cast Iron Bolt on Hub Shaft Fixing with Tapered Bore
- Regular price
- €23.02 ex VAT
- Sale price
- €23,02
- Regular price
-
Description
Cast Iron Bolt-on-Hub Shaft Fixings: These Bolt-on-Hubs feature a tapered bore and are designed for use with universally accepted tapered bushes. They provide a convenient means of securing fan rotors, impellers, agitators and other devices which must be fastened firmly to shafts. We supply both BF and SM style Bolt-on-Hubs which is the complete range. These hubs are manufactured from GG22 cast iron and are phosphated for extra rust protection.
Benefit: Excellent resistance to rust

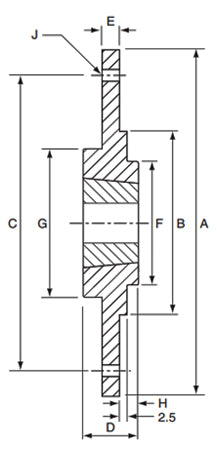

Technical
| Hub Reference | = | BF16 |
| Bush Number | = | 1610 |
| A | = | 130mm |
| B | = | 90mm |
| C | = | 110mm |
| D | = | 25mm |
| E | = | 6.5mm |
| F | = | 84mm |
| G | = | 90mm |
| H | = | 10mm |
| J | = | 6 x 6.5mm |
