SKU: BF20-MB

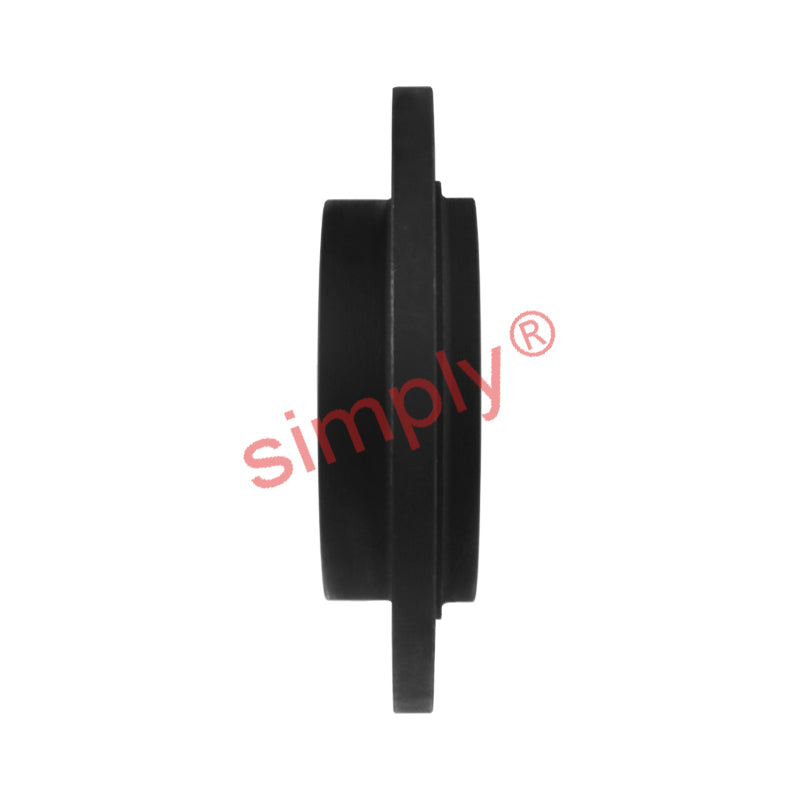

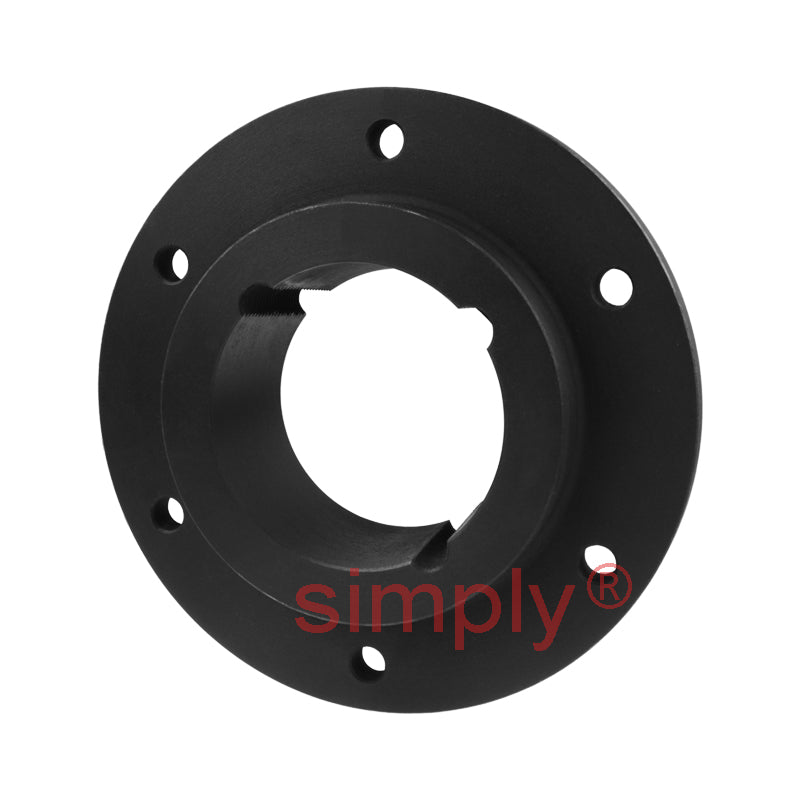

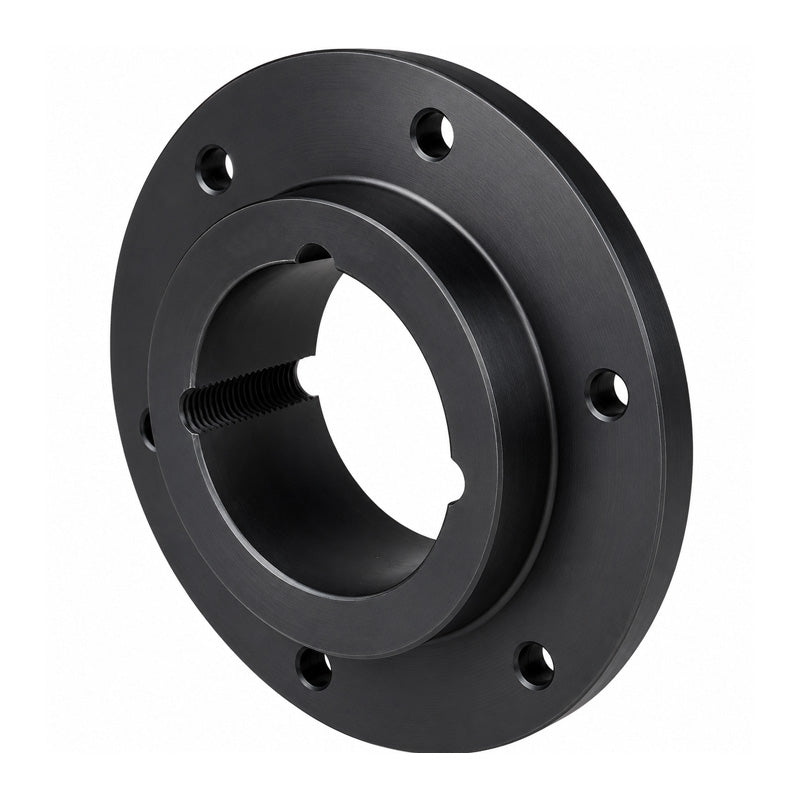

Major Branded BF20 Cast Iron Bolt on Hub Shaft Fixing with Tapered Bore
- Regular price
- €33.37 ex VAT
- Sale price
- €33,37
- Regular price
-
In stock
Quantity Price Breaks
3
€29.70
5
€28.03
9
€27.70
19
€27.36
49
€27.03
74
€26.70
99
€25.03
199
€24.69
249
€24.36
499
€24.03
999
€23.36
SKU:
BF20-MB
Major Branded BF20 Cast Iron Bolt on Hub Shaft Fixing with Tapered Bore
- Regular price
- €33.37 ex VAT
- Sale price
- €33,37
- Regular price
-
Description
Cast Iron Bolt-on-Hub Shaft Fixings: These Bolt-on-Hubs feature a tapered bore and are designed for use with universally accepted tapered bushes. They provide a convenient means of securing fan rotors, impellers, agitators and other devices which must be fastened firmly to shafts. We supply both BF and SM style Bolt-on-Hubs which is the complete range. These hubs are manufactured from GG22 cast iron and are phosphated for extra rust protection.
Benefit: Excellent resistance to rust
Technical
| Hub Reference | = | BF20 |
| Bush Number | = | 2012 |
| A | = | 145mm |
| B | = | 100mm |
| C | = | 125mm |
| D | = | 32mm |
| E | = | 8.5mm |
| F | = | 99mm |
| G | = | 100mm |
| H | = | 13mm |
| J | = | 6 x 8.5mm |
