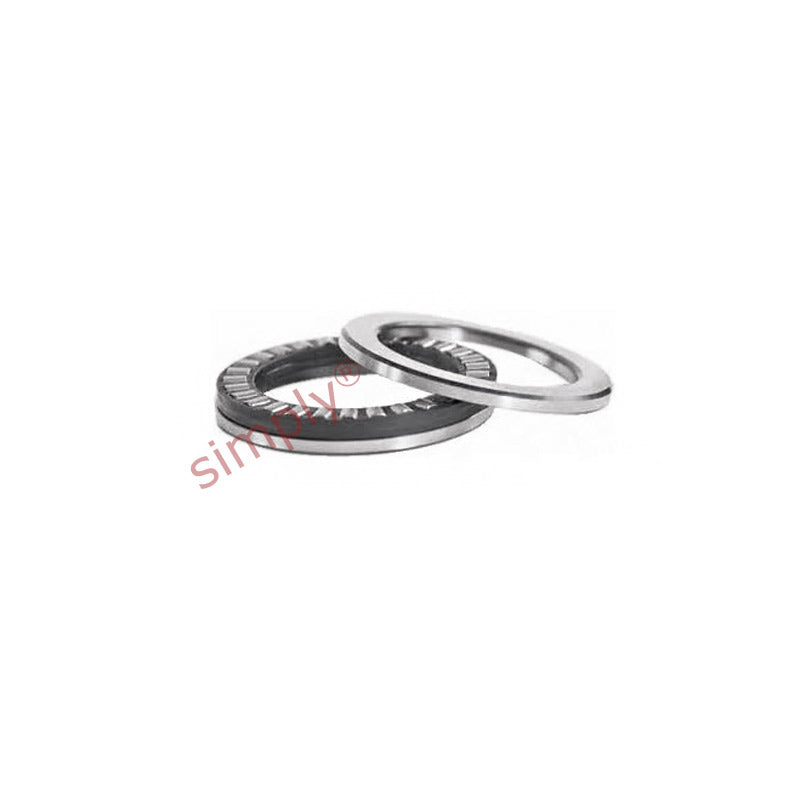

Major Brand BGSB358371 Cylindrical Roller Thrust Bearing 508x762x139.7mm
Major Brand BGSB358371 Cylindrical Roller Thrust Bearing 508x762x139.7mm
Out of stock
Share this product
Description
Description
|
Cylindrical Roller Thrust Bearings: Ideally suited to arrangements that require support for heavy radial loads. They are relatively insensitive to shock loads in operation and are reasonably stiff in operation requiring little axial space. The cylindrical surface of the rollers are slightly relieved towards the inner end to relieve / eliminate edge stresses. They are separable by design to facilitate ease of mounting and assembly. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 508mm
- Outside Diameter:
- 762mm
- Width:
- 139.7mm
Technical
Technical
| d | 508mm |
|---|---|
| D | 762mm |
| H | 139.7mm |
| Dynamic load C | 4900 kN |
| Static load Co | 26500 kN |
| Fatigue load limit Pu | 1660 kN |
| Min load factor A | 56 |
| Reference speed | 220 rpm |
| Limiting speed | 450 rpm |
| Weight | 40.5 kg |
