• NTN BK0609T2 Drawn Cup Needle Roller Bearing with Closed End 6x10x9mm - Allow 2-3 Days
1 1

SKU: BK0609T2-NTN

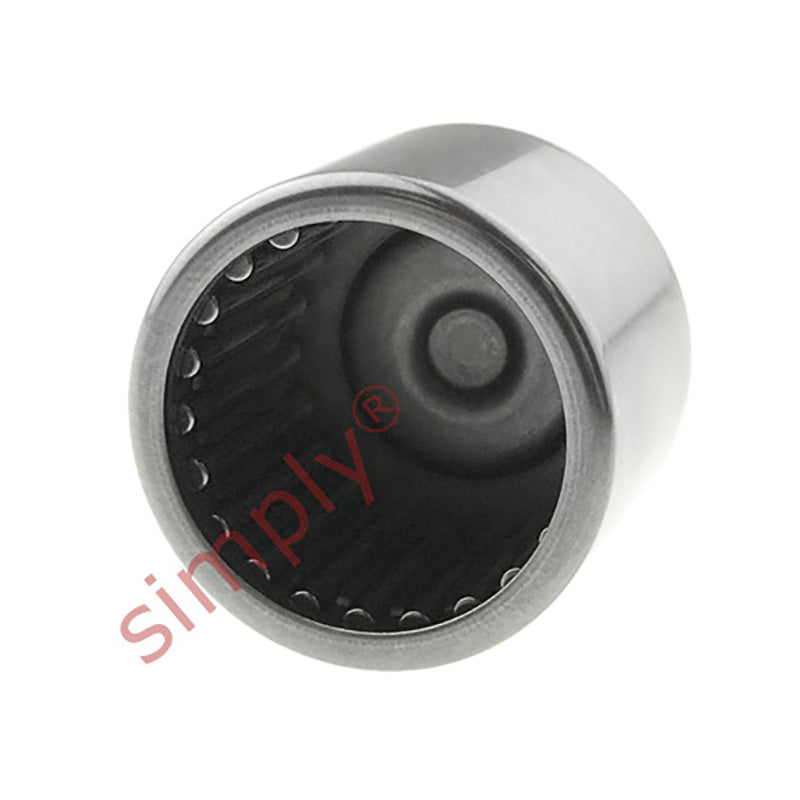

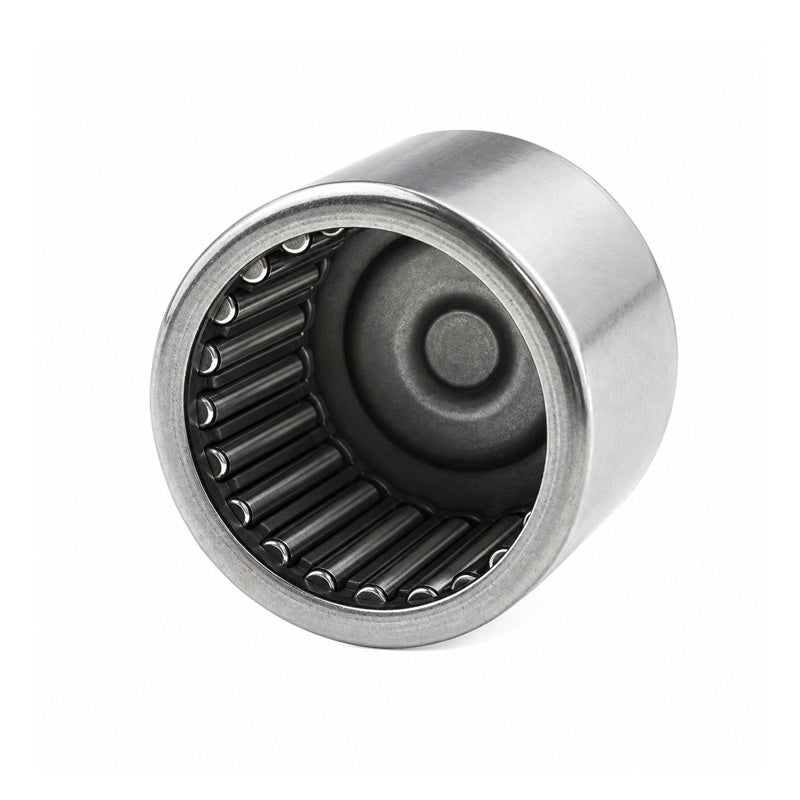

NTN BK0609T2 Drawn Cup Needle Roller Bearing with Closed End 6x10x9mm - Allow 2-3 Days

NTN BK0609T2 Drawn Cup Needle Roller Bearing with Closed End 6x10x9mm - Allow 2-3 Days
€5,52 ex VAT
€5,52 ex VAT
Sale Sold out

Low stock

Price Break
3+ €4,19
4+ €3,96
9+ €3,91
19+ €3,86
49+ €3,82
99+ €3,77
499+ €3,53
999+ €3,49
1999+ €3,44
2999+ €3,39
4999+ €3,30

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
I306Y2DTJY
Brand / Quality:
NTN - High Quality
Inside Diameter:
6mm
Outside Diameter:
10mm
Width:
9mm
Technical
Fw - Under rollers diameter 6mm
D - Outside diameter 10mm
C - Width of bearing, drawn cup or outer ring 9mm
C1 - Max drawn cup closed end thickness 1.6mm
Lubrication hole on outer ring? No
Cr - Dynamic load rating 2.66 kN
C0r - Static load rating 2.28 kN
N - Grease lubrication limit speed 25000 tr/min
N - Oil lubrication limit speed 37000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +100 Deg C
