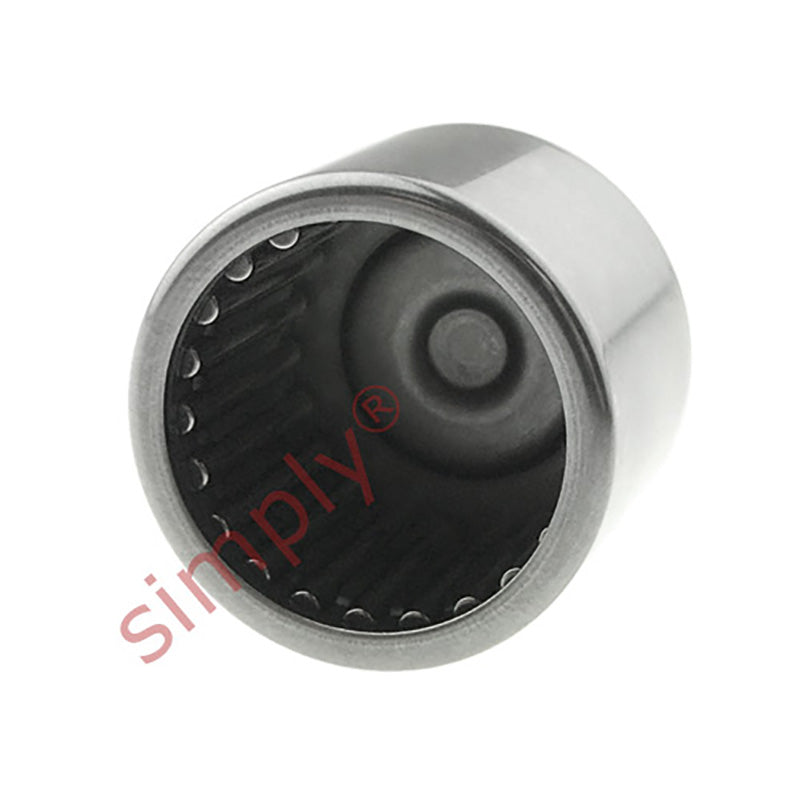

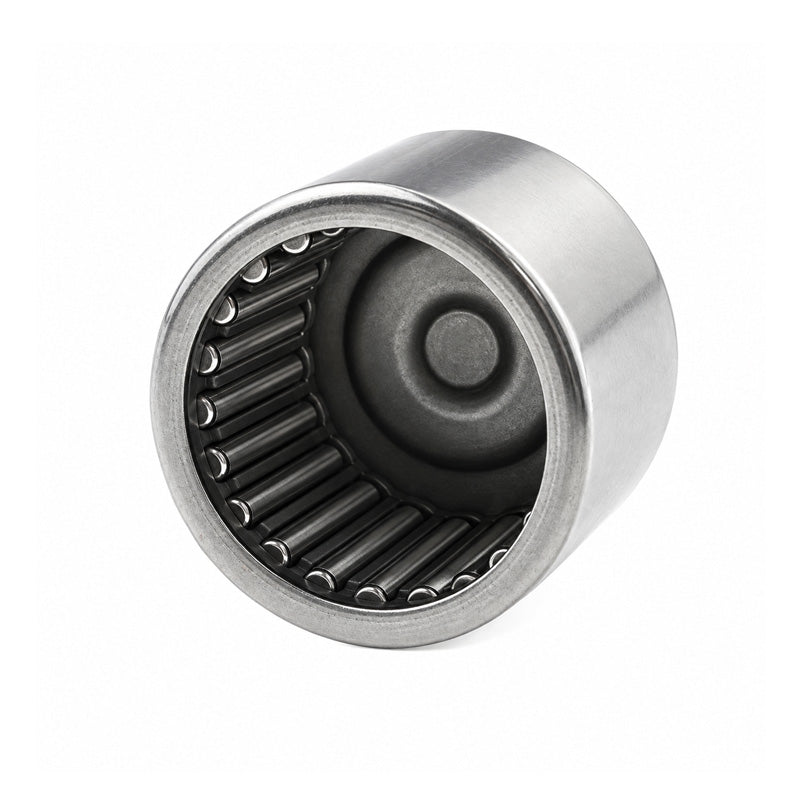

• NTN BK1312 Drawn Cup Needle Roller Bearing with Closed End 13x19x12mm
1 1

SKU: BK1312-NTN

NTN BK1312 Drawn Cup Needle Roller Bearing with Closed End 13x19x12mm

NTN BK1312 Drawn Cup Needle Roller Bearing with Closed End 13x19x12mm
€5,98 ex VAT
€5,98 ex VAT
Sale Sold out

In stock

Price Break
3+ €4,55
4+ €4,29
9+ €4,24
19+ €4,19
49+ €4,14
99+ €4,09
499+ €3,83
999+ €3,78
1999+ €3,73
2999+ €3,68
4999+ €3,58

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
I306Y2DTJY
Brand / Quality:
NTN - High Quality
Inside Diameter:
13mm
Outside Diameter:
19mm
Width:
12mm
Technical
Fw - Under rollers diameter 13mm
D - Outside diameter 19mm
C - Width of bearing, drawn cup or outer ring 12mm
C1 - Max drawn cup closed end thickness 2.7mm
Lubrication hole on outer ring? No
Inner ring reference IR10X13X12.5
Cr - Dynamic load rating 6.95 kN
C0r - Static load rating 7.9 kN
N - Grease lubrication limit speed 12000 tr/min
N - Oil lubrication limit speed 18000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
