SKU: BK1414RS-MB

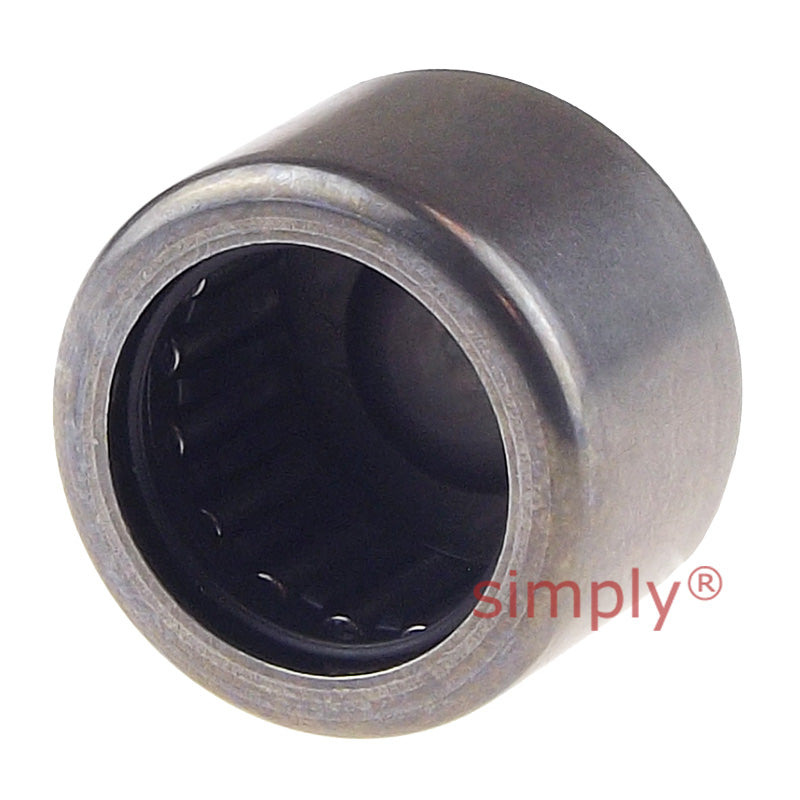

Major Brand BK1414RS Drawn Cup Type Needle Roller Rubber Sealed Bearing with One Closed End 14x20x14mm
- Regular price
- €8.97 ex VAT
- Sale price
- €8,97
- Regular price
-
In stock
Quantity Price Breaks
10
€7.98
19
€7.53
29
€7.45
39
€7.36
49
€7.27
74
€7.18
99
€6.73
199
€6.64
249
€6.55
499
€6.46
999
€6.28
SKU:
BK1414RS-MB
Major Brand BK1414RS Drawn Cup Type Needle Roller Rubber Sealed Bearing with One Closed End 14x20x14mm
- Regular price
- €8.97 ex VAT
- Sale price
- €8,97
- Regular price
-
Description
|
BK Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with one open end. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS series are fitted with a nitrile rubber seal. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
Technical
| Fw | = | 14mm |
| D | = | 20mm |
| C | = | 14mm |
| Dynamic load | = | 6820 N |
| Static load | = | 8650 N |
| Fatigue load limit Pu | = | 980 N |
| Speed in grease | = | 11000 rpm |
| C1 | = | 11.3mm |
| r1r2 min | = | 0.8mm |
| Da max | = | 15mm |
| ra max | = | 0.8mm |
| Inner ring | = | IR10x14x13 |
| Weight | = | 13 g |
