• NTN BK1516 Drawn Cup Needle Roller Bearing with Closed End 15x21x16mm
1 1

SKU: BK1516-NTN

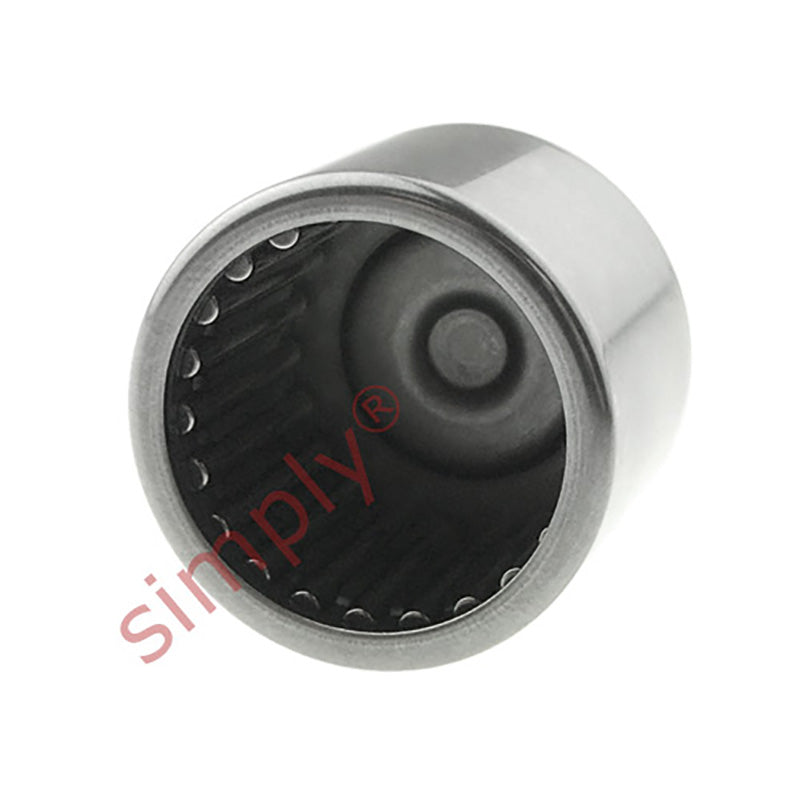

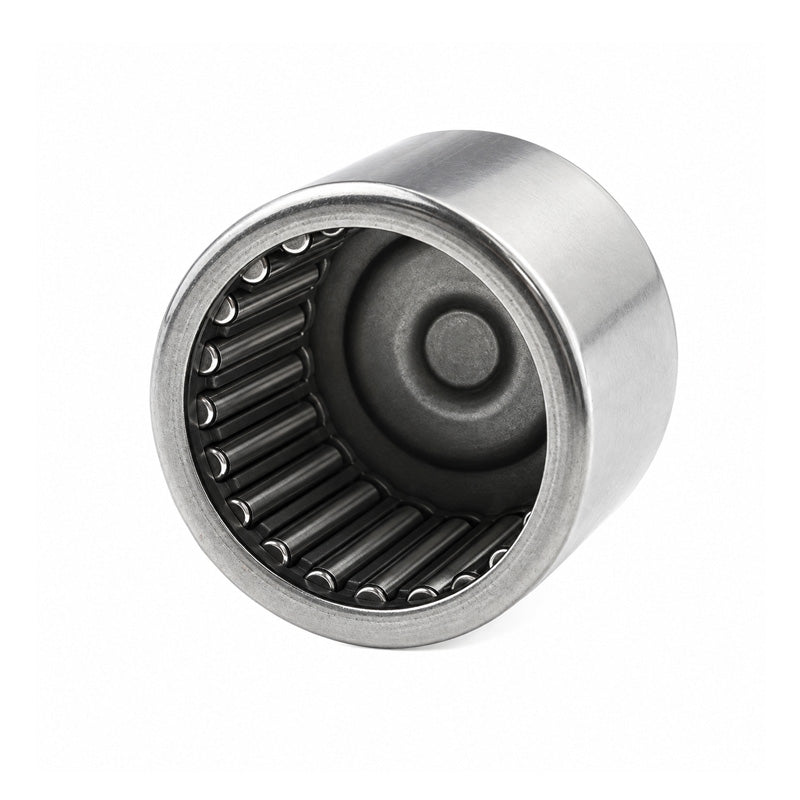

NTN BK1516 Drawn Cup Needle Roller Bearing with Closed End 15x21x16mm

NTN BK1516 Drawn Cup Needle Roller Bearing with Closed End 15x21x16mm
€6,29 ex VAT
€6,29 ex VAT
Sale Sold out

Low stock

Price Break
3+ €4,78
4+ €4,51
9+ €4,46
19+ €4,40
49+ €4,35
99+ €4,30
499+ €4,03
999+ €3,97
1999+ €3,92
2999+ €3,87
4999+ €3,76

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
I306Y2DTJY
Brand / Quality:
NTN - High Quality
Inside Diameter:
15mm
Outside Diameter:
21mm
Width:
16mm
Technical
Fw - Under rollers diameter 15mm
D - Outside diameter 21mm
C - Width of bearing, drawn cup or outer ring 16mm
C1 - Max drawn cup closed end thickness 2.7mm
Lubrication hole on outer ring? No
Inner ring reference IR12X15X16.5
Cr - Dynamic load rating 10.7 kN
C0r - Static load rating 14.4 kN
N - Grease lubrication limit speed 11000 tr/min
N - Oil lubrication limit speed 16000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
