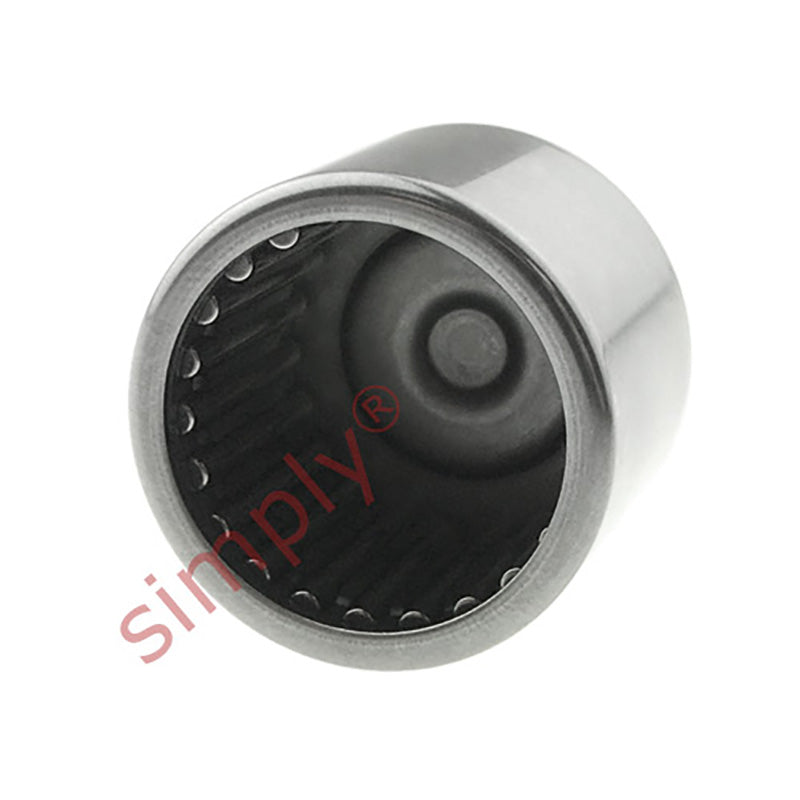

Major Brand BK2526 Drawn Cup Type Needle Roller Bearing with One Closed End 25x32x26mm
Major Brand BK2526 Drawn Cup Type Needle Roller Bearing with One Closed End 25x32x26mm
Regular price
€11,36
ex VAT
Regular price
Sale price
€11,36
ex VAT
In stock
Price Break
10+
€8,64
19+
€8,15
29+
€8,06
39+
€7,96
49+
€7,86
74+
€7,76
99+
€7,28
199+
€7,18
249+
€7,08
499+
€6,99
999+
€6,79
Quantity
Couldn't load pickup availability
Description
Description
|
BK Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with one open end. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS series are fitted with a nitrile rubber seal. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 32mm
- Width:
- 26mm
Technical
Technical
| Fw | 25mm |
|---|---|
| D | 32mm |
| C | 26mm |
| Dynamic load | 24200 N |
| Static load | 45000 N |
| Fatigue load limit Pu | 5500 N |
| Speed in grease | 7500 rpm |
| Speed in oil | 11000 rpm |
| C1 | 23.3mm |
| r1r2 min | 0.8mm |
| Da max | 27mm |
| ra max | 0.8mm |
| Inner ring | IR20x25x26.5 |
| Seal | G25x32x4 |
| Weight | 48 g |
