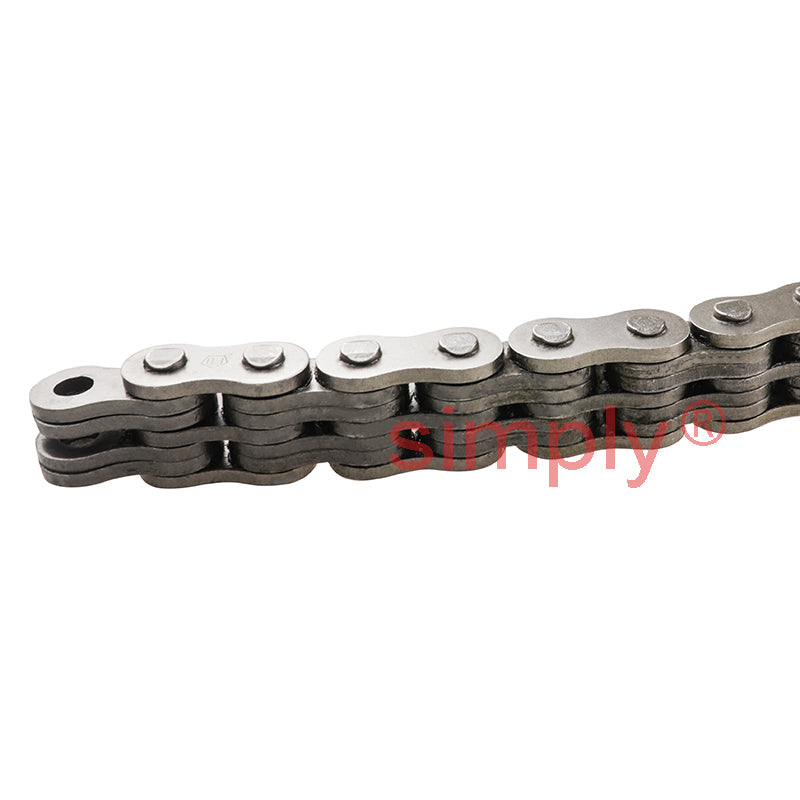

Major Brand BL1246 Leaf Chain 1-1/2 inch Pitch - 10 Feet

Leaf Chain - BL-LH Type: Leaf Chain is the simplest of steel chains, consisting only of link plates and pins. This chain generally has greater tensile strength than roller chains and runs over sheaves rather than sprockets. They are suitable for hanging, balancing or motion-transmitting applications. Leaf chains are often used as counterweight chains for machine tools, elevator and oven doors, forklift truck masts, spinning frames and similar lifting or balancing applications. Plates are connected by pins and hold the tension loaded on the chain.
BL-LH Type: BL-LH series (Leaf Heavy) leaf chain, manufactured according to ISO4347, DIN8152, ANSI B29.8 and NFE26107, is the only leaf chain that is constructed from specific leaf chain components. BL-LH series leaf chain is a heavier duty leaf chain than AL and EL-LL series and so is the most common leaf chain used for forklift trucks, lifting and materials handling equipment.
Benefits: Long service life, high strength, compact design

Brand / Quality:

Major Brand - High Quality

Inside Diameter:

12.7mm

Style:

4x6 Lacing

Type:

BL Series

Pitch:

38.1mm = 1.5 (1-1/2) inch
