SKU: BRM30-60-502-DURB

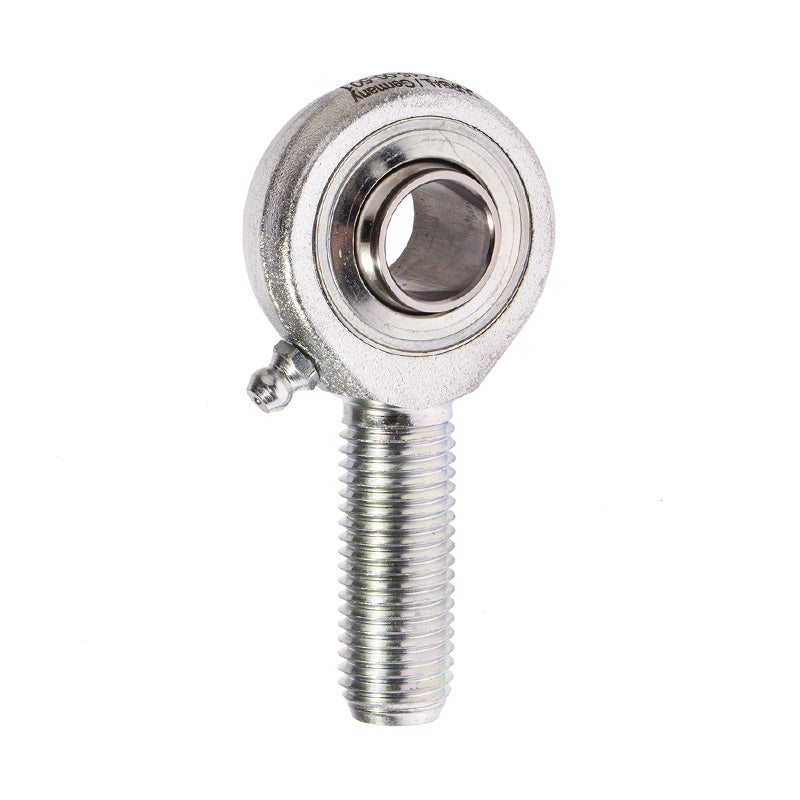

Durbal BRM30-60-502 Left Hand Metric Stainless Steel Male Rod End M30x2 Thread
Out of stock
Share this product
Description
DURBAL Heavy-Duty Stainless Steel Male Rod Ends with Integral Self-Aligning Roller Bearing: Threaded male rod end consisting of a forged, electropolished stainless steel housing with hardened super-finished stainless steel ball bearings running in a steel raceway. For high speeds, wide swivelling angles or rotating movements. These rod ends have lower bearing friction compared to other similar housings. Made of forged stainless steel, extremely high loads resistant and surface electropolished which ensures you a very high corrosion resistance. Low maintenance due to long-term lubrication with food-grade approval; the rod ends may be subsequently lubricated by means of a funnel or conical grease nipple. Temperature range: -45° C to +120° C.
Benefits: Covering discs in stainless steel on both sides to prevent the penetration of coarse dirt particles inside the bearing.
- Brand / Quality:
- Durbal - High Quality
- Thread Size:
- M30x2
- Thread M / F:
- Male
- Thread Direction:
- Left Hand
- Inside Diameter:
- 30mm
Technical
| Thread Direction | -502 (Left) |
|---|---|
| d | 30mm |
| G (Thread) | M30x2 |
| B | 37mm |
| C1 | 25mm |
| h | 110mm |
| d1 | 34.5mm |
| d2 | 70mm |
| l1 | 66mm |
| l2 | 145mm |
| l7 | 35mm |
| Torque Moment | 250Nm |
| tilt angle &α; | 7.5 deg |
| kg | 0.922kg |
| rotational speed limit n max | 450 min-1 |
| Axial factor | 2.24 Y |
| axial factor | 2.35 Y0 |
| basic load rating dyn C | 9.94 kN |
| basic load rating stat Co | 5.25 kN |
| radial clearance CN | 10-30 |
