SKU: C-UCFC206D1-NTN

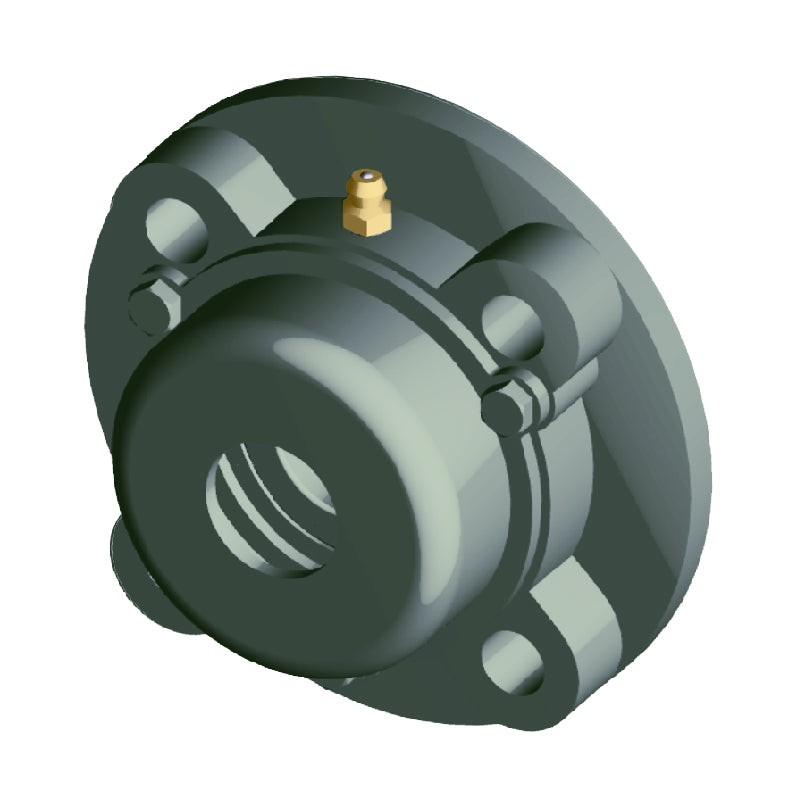

NTN C-UCFC206D1 Metric Four Bolt Cast Iron Round Flanged Housing with 30mm Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
- Regular price
- €41.42 ex VAT
- Sale price
- €41,42
- Regular price
-
Not in stock
Quantity Price Breaks
3
€36.86
4
€34.79
9
€34.38
19
€33.96
49
€33.55
99
€33.14
499
€31.07
999
€30.65
1999
€30.24
2999
€29.82
4999
€28.99
SKU:
C-UCFC206D1-NTN
NTN C-UCFC206D1 Metric Four Bolt Cast Iron Round Flanged Housing with 30mm Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
- Regular price
- €41.42 ex VAT
- Sale price
- €41,42
- Regular price
-
Description
|
UCFC Series 4 Bolt Round Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication, this style has the benefit of a shouldered back face to facilitate location of the housing prior to fastening in place. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |

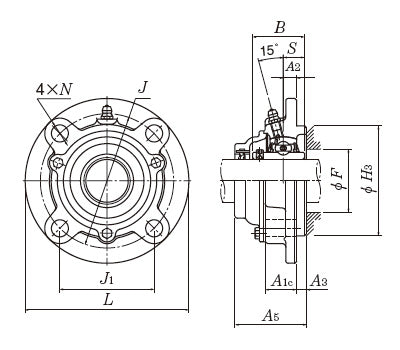

Technical
| --- | = | Dimensions |
| Shaft diameter | = | 30mm |
| L | = | 125mm |
| J | = | 100mm |
| (J< | = | sub> |
| 1< | = | /sub> |
| ) | = | 70.7mm |
| A< | = | sub> |
| 2< | = | /sub> |
| = | 10mm | |
| N | = | 12mm |
| A< | = | sub> |
| 3< | = | /sub> |
| = | 8mm | |
| A< | = | sub> |
| 1C< | = | /sub> |
| = | 24.5mm | |
| A | = | 31mm |
| H< | = | sub> |
| 3< | = | /sub> |
| = | 80mm | |
| B | = | 38.1mm |
| S | = | 15.9mm |
| F (Min.) | = | mm |
| A< | = | sub> |
| 5< | = | /sub> |
| = | 56mm | |
| Fixing bolt | = | M10 |
| --- | = | Load rating |
| Dynamic load C< | = | sub> |
| r< | = | /sub> |
| = | 21.6 kN | |
| Static load C< | = | sub> |
| 0r< | = | /sub> |
| = | 11.3 kN | |
| Fatigue load limit C< | = | sub> |
| u< | = | /sub> |
| = | 0.795 kN | |
| --- | = | Unit information |
| Mass | = | 1.6 kg |
