SKU: C-UCFC212D1-NTN

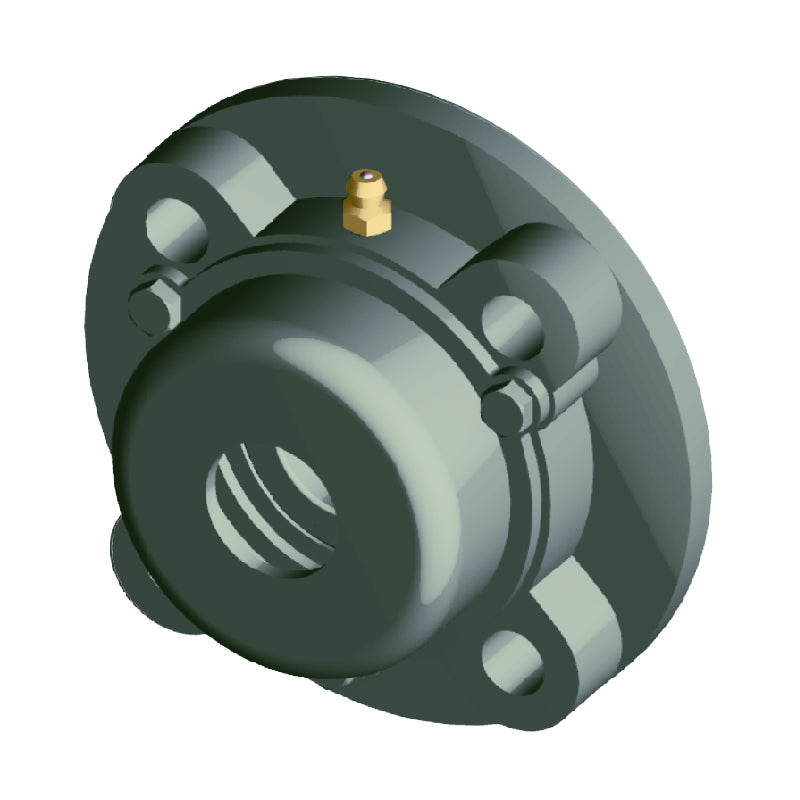

NTN C-UCFC212D1 Metric Four Bolt Cast Iron Round Flanged Housing with 60mm Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
- Regular price
- €96.28 ex VAT
- Sale price
- €96,28
- Regular price
-
Not in stock
Quantity Price Breaks
3
€85.69
4
€80.88
9
€79.91
19
€78.95
49
€77.99
99
€77.02
499
€72.21
999
€71.25
1999
€70.28
2999
€69.32
4999
€67.40
SKU:
C-UCFC212D1-NTN
NTN C-UCFC212D1 Metric Four Bolt Cast Iron Round Flanged Housing with 60mm Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
- Regular price
- €96.28 ex VAT
- Sale price
- €96,28
- Regular price
-
Description
|
UCFC Series 4 Bolt Round Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication, this style has the benefit of a shouldered back face to facilitate location of the housing prior to fastening in place. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| --- | = | Dimensions |
| Shaft diameter | = | 60mm |
| L | = | 195mm |
| J | = | 160mm |
| (J< | = | sub> |
| 1< | = | /sub> |
| ) | = | 113.1mm |
| A< | = | sub> |
| 2< | = | /sub> |
| = | 17mm | |
| N | = | 19mm |
| A< | = | sub> |
| 3< | = | /sub> |
| = | 12mm | |
| A< | = | sub> |
| 1C< | = | /sub> |
| = | 38mm | |
| A | = | 48mm |
| H< | = | sub> |
| 3< | = | /sub> |
| = | 135mm | |
| B | = | 65.1mm |
| S | = | 25.4mm |
| F (Min.) | = | mm |
| A< | = | sub> |
| 5< | = | /sub> |
| = | 86mm | |
| Fixing bolt | = | M16 |
| --- | = | Load rating |
| Dynamic load C< | = | sub> |
| r< | = | /sub> |
| = | 58 kN | |
| Static load C< | = | sub> |
| 0r< | = | /sub> |
| = | 36 kN | |
| Fatigue load limit C< | = | sub> |
| u< | = | /sub> |
| = | 2.83 kN | |
| --- | = | Unit information |
| Mass | = | 5.9 kg |
